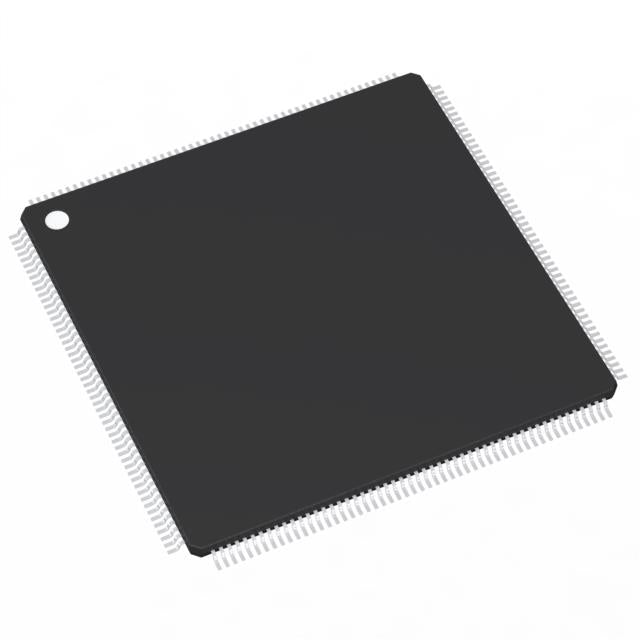

STMicroelectronics SPC564B64L8C9E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $61.98 | $61.98 |
| 15+ | $14.25 | $213.75 |
| 25+ | $13.94 | $348.50 |
| 50+ | $13.17 | $658.50 |
| 100+ | $11.62 | $1,162.00 |
| N+ | $2.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tray | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 177 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 33x10b, 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The SPC564B64L8C9E0X from STMicroelectronics is a 32-bit automotive MCU featuring the e200z4d core at 120MHz. It provides 1.5MB flash and 128KB RAM, balancing performance and cost for powertrain and body applications. With a 3V to 5.5V supply range and -40°C to 125°C operation, it is engineered for harsh automotive environments. The 208-LQFP package offers extensive I/O capabilities.
- 120MHz e200z4d core: Reliable performance for real-time automotive control.
- 1.5MB flash: Sufficient for complex software stacks and calibration data.
- Wide 3V-5.5V supply: Direct battery connection without external regulators.
- Extended temperature range: Withstands under-hood heat and cold starts.
- 208-pin package: High pin count for peripheral-rich designs.
Advanced Driver Assistance Systems (ADAS)
120MHz e200z4d core with 128KB RAM processes sensor fusion for lane-keeping and collision avoidance.
Electric Power Steering
High-speed PWM and DMA enable precise torque control with low latency.
Engine Management Systems
1.5MB flash stores complex ignition and fuel maps for optimal performance.
Hybrid Vehicle Controllers
5.5V operation and 125°C rating handle high-voltage environments in hybrid drivetrains.
Industrial Robotics
208-pin package provides ample I/O for multi-axis servo control and safety interlocks.
Railway Signaling Systems
Robust WDT and POR ensure fail-safe operation in safety-critical infrastructure.
- Q: What core does this MCU use?
- A: e200z4d Power Architecture core at 120MHz.
- Q: How much flash memory is available?
- A: 1.5MB, suitable for complex automotive applications.
- Q: What is the supply voltage range?
- A: 3V to 5.5V, compatible with automotive power systems.
- Q: What package is used?
- A: 208-LQFP, providing many I/O pins for peripheral connectivity.
- Q: What temperature range is supported?
- A: -40°C to 125°C for extreme conditions.
