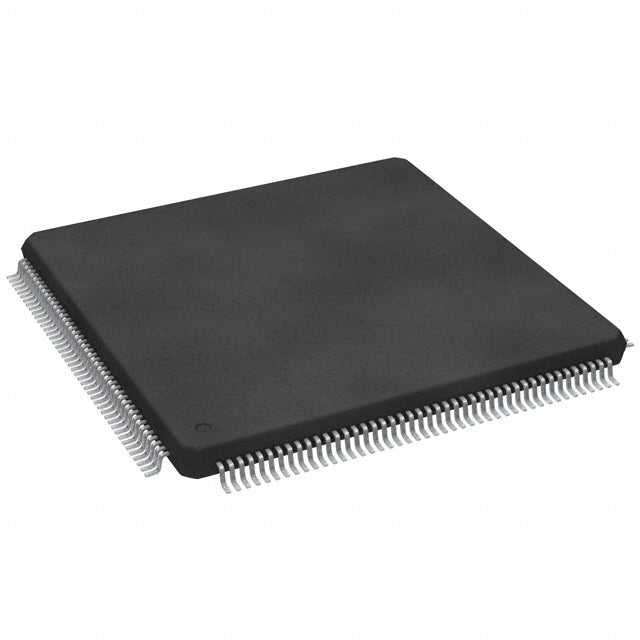

STMicroelectronics SPC564B74L7C9ECX
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $59.94 | $59.94 |
| 15+ | $13.78 | $206.70 |
| 25+ | $13.48 | $337.00 |
| 50+ | $12.73 | $636.50 |
| 100+ | $11.24 | $1,124.00 |
| N+ | $2.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Bulk | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 147 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 27x10b, 5x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The SPC564B74L7C9ECX from STMicroelectronics is a 32-bit microcontroller based on the e200z4d Power Architecture core, running at 120MHz. It provides 3MB of flash and 192K RAM, with a supply voltage of 3V to 5.5V. The 176-LQFP package includes DMA, POR, PWM, and WDT, designed for automotive and industrial applications requiring high temperature tolerance.
- 120MHz e200z4d Core: Offers high performance for real-time control and signal processing.
- 3MB Flash: Provides ample space for complex automotive and industrial firmware.
- Wide Voltage Range (3V-5.5V): Supports direct connection to automotive battery systems.
- Extended Temperature Range (-40°C to 125°C): Suitable for extreme environments.
Automotive Engine Control Units
The 120MHz e200z4d core and 3MB flash handle complex fuel injection and ignition timing algorithms, with a -40°C to 125°C range for under-hood use.
Industrial Servo Drives
High-speed PWM and DMA enable precise current and position control in CNC machines, while the 5.5V supply simplifies gate driver interfacing.
Electric Power Steering
The robust core and 192K RAM support real-time torque sensing and motor control, with POR ensuring safe startup.
Railway Traction Control
The extended temperature range and 3MB flash allow for complex traction algorithms and fault logging in harsh environments.
Construction Vehicle Telematics
With 5.5V operation and CAN interfaces, it can monitor engine health and GPS data in excavators and loaders.
Aviation Actuator Controllers
The high reliability and 125°C rating make it suitable for flight control actuators in small aircraft.
- Q: What core does the SPC564B74L7C9ECX use?
- A: It uses the e200z4d 32-bit Power Architecture core.
- Q: What is the maximum operating frequency?
- A: It runs at 120MHz.
- Q: How much flash memory is available?
- A: It has 3MB of flash memory.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: What package is it available in?
- A: It comes in a 176-LQFP package.
