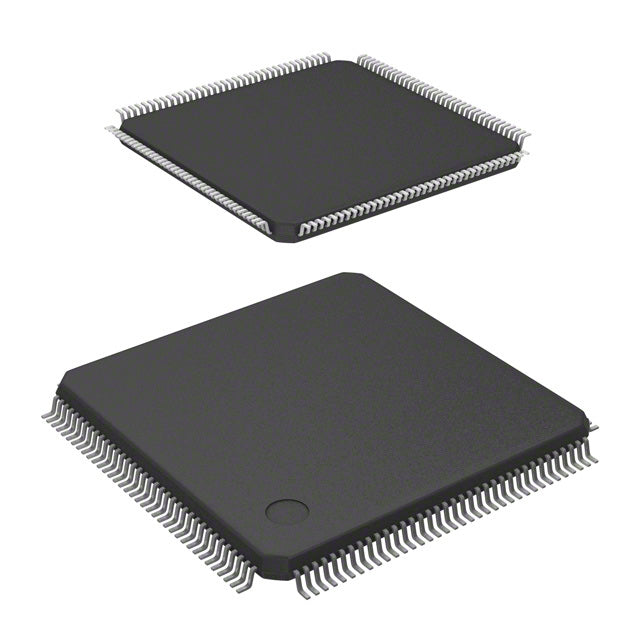

STMicroelectronics SPC56EL60L5CBFQR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $48.04 | $48.04 |
| 15+ | $11.05 | $165.75 |
| 25+ | $10.81 | $270.25 |
| 50+ | $10.21 | $510.50 |
| 100+ | $9.01 | $901.00 |
| N+ | $1.80 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56xL |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit Dual-Core |
| Speed | 120MHz |
| Connectivity | CANbus, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 96 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.63V |
| Data Converters | A/D 32x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The STMicroelectronics SPC56EL60L5CBFQR is a high-performance 32-bit MCU built on the Power Architecture. Its dual e200z4d core (single core active) runs at 120MHz, paired with 1MB flash and 128KB RAM for demanding automotive and industrial applications. The 3.3V supply and integrated DMA, LVD, POR, PWM, and WDT peripherals enable compact, reliable designs. Housed in a 144-LQFP, it operates from -40°C to 125°C.
- 120MHz e200z4d core: Delivers high computational bandwidth for complex real-time algorithms and control loops.
- 1MB flash / 128KB RAM: Supports large application code and data buffering without external memory.
- Extended temperature range (-40°C to 125°C): Suitable for harsh under-hood and industrial environments.
- Integrated safety peripherals (LVD, POR, WDT): Enhances system reliability and simplifies compliance with ISO 26262.
Engine Management Units (ECU)
The 120MHz e200z4d core and 1MB flash handle complex fuel injection and ignition timing maps, while the DMA accelerates sensor data acquisition from crank and cam shafts.
Transmission Control Units
With 128KB RAM and high-speed PWM, the MCU manages clutch pressure and gear shift solenoids with microsecond precision, improving shift quality.
Advanced Driver Assistance Systems (ADAS) Fusion
The 144-pin package provides enough I/O to interface with radar and camera pre-processors, while the LVD and POR ensure safe operation during voltage transients.
Electric Vehicle (EV) Battery Management
Its -40°C to 125°C rating allows placement near battery cells, and the integrated watchdog monitors stack voltage sensing loops for fail-safe operation.
Industrial Servo Drives
The high-speed PWM and 120MHz core enable precise current loop control for 3-phase induction motors in CNC machinery.
Railway Signaling Systems
The extended temperature range and robust DMA support redundant communication protocols (e.g., CAN-FD) for track-side control units.
- Q: What is the maximum clock speed of the SPC56EL60L5CBFQR?
- A: The e200z4d core runs at up to 120MHz, providing high throughput for real-time control.
- Q: What is the supply voltage requirement?
- A: It requires a narrow 3V to 3.63V supply, typical for modern 3.3V automotive systems.
- Q: How much memory is available?
- A: It features 1MB of program flash and 128KB of RAM.
- Q: What package and temperature range does it support?
- A: It is available in a 144-LQFP package and operates from -40°C to 125°C.
