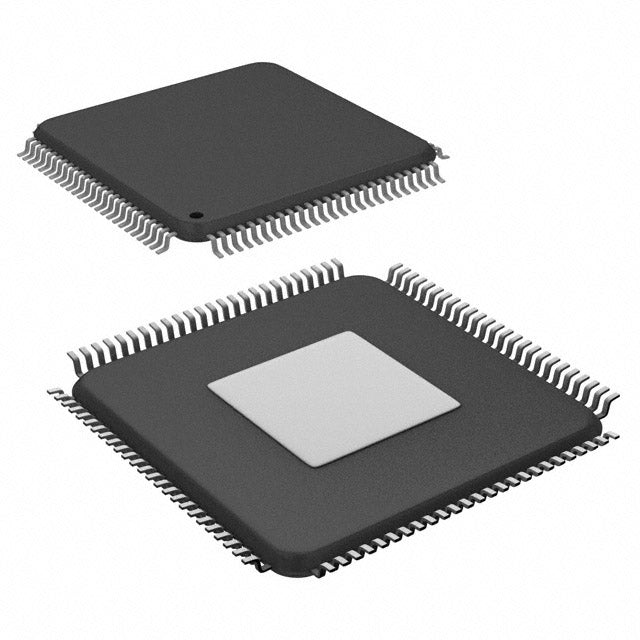

STMicroelectronics SPC572L64E3BC6AR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.93 | $16.93 |
| 15+ | $11.12 | $166.80 |
| 25+ | $10.88 | $272.00 |
| 50+ | $10.28 | $514.00 |
| 100+ | $9.07 | $907.00 |
| N+ | $1.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC572Lx |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | e200z2 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, Ethernet, LINbus, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, WDT |
| Number of I/O | - |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-eTQFP (14x14) |
| Package / Case | 100-TQFP Exposed Pad |
| ROHS |  |
The SPC572L64E3BC6AR from STMicroelectronics is a high-performance 32-bit microcontroller based on the e200z2 Power Architecture core. It operates at up to 80MHz and provides 1.5MB flash and 64KB RAM. With a supply voltage of 3.3V or 5V, it is designed for automotive and industrial applications requiring high reliability. The 100-TQFP exposed pad package ensures efficient heat dissipation, and its operating temperature range of -40°C to 125°C suits harsh environments.
- Automotive-grade reliability: Designed to meet AEC-Q100 standards for harsh conditions.
- Dual voltage support: 3.3V and 5V I/O compatibility simplifies interfacing with sensors and actuators.
- High memory capacity: 1.5MB flash enables complex control algorithms and data logging.
- Efficient DMA: Reduces CPU load for high-speed data transfers.
- Extended temperature range: -40°C to 125°C ensures operation in extreme environments.
Engine Control Units (ECU)
The e200z2 core at 80MHz and 1.5MB flash handle real-time engine management algorithms, including fuel injection and ignition timing.
Transmission Control
With 5V operation and robust PWM, it can drive solenoids and valves for automatic gearbox control in passenger cars.
Electric Power Steering
High-speed processing and DMA enable precise motor control for EPS systems, improving fuel efficiency and driver comfort.
Body Control Modules
The wide temperature range and integrated safety features make it suitable for central body electronics, managing lighting, locks, and wipers.
Hybrid Vehicle Controllers
It can coordinate between the internal combustion engine and electric motor, managing energy flow and regenerative braking.
Industrial Automation
Beyond automotive, its rugged design and 5V I/O make it useful for PLCs and motor drives in factory settings.
- Q: What core is used in the SPC572L64E3BC6AR?
- A: It uses the e200z2 Power Architecture core.
- Q: What is the supply voltage?
- A: It supports 3.3V and 5V supplies.
- Q: How much flash and RAM does it have?
- A: It offers 1.5MB flash and 64KB RAM.
- Q: What is the maximum operating frequency?
- A: The core runs at up to 80MHz.
- Q: What package is available?
- A: It comes in a 100-TQFP exposed pad package.
