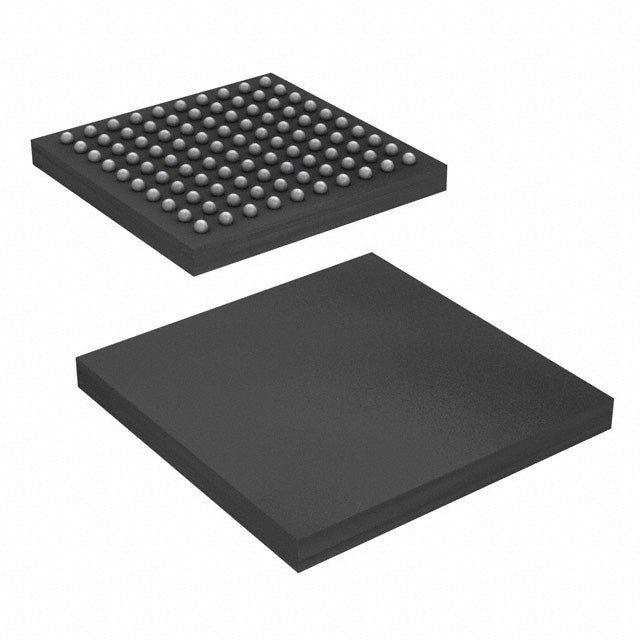

NXP USA Inc. SPC5745BK1CMH2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $49.84 | $49.84 |
| 15+ | $11.46 | $171.90 |
| 25+ | $11.21 | $280.25 |
| 50+ | $10.59 | $529.50 |
| 100+ | $9.35 | $935.00 |
| N+ | $1.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | MPC57xx |
| Packaging | Tray | Tray |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA, I2S, POR, WDT |
| Number of I/O | - |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Data Converters | A/D 36x10b, 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Package / Case | 100-LFBGA |
| ROHS |  |
The NXP SPC5745BK1CMH2 is a 32-bit MCU based on the e200z4 core, operating at 120MHz. It features 2MB of flash memory and 256K x 8 of RAM, packaged in a 100-LFBGA. With a supply voltage range of 3.15V to 5.5V, it is designed for automotive and industrial applications. Integrated peripherals include DMA, I2S, POR, and WDT, providing robust performance and reliability.
- Automotive-Grade Reliability: Designed for harsh environments with a wide voltage range and watchdog timer for system integrity.
- High-Speed Processing: The 120MHz e200z4 core delivers fast execution for real-time control applications.
- Large Program Memory: 2MB flash enables complex firmware and over-the-air update capabilities.
- Efficient Data Transfer: DMA reduces CPU load, improving overall system throughput and responsiveness.
Automotive Body Control Modules
The e200z4 core at 120MHz and 5.5V operation handle body electronics like lighting and window control, with WDT for fail-safe operation.
Engine Management Systems
With 2MB flash, it supports complex engine control algorithms, while DMA accelerates communication with sensors and actuators.
Transmission Control Units
The robust voltage range and 120MHz processing enable real-time gear shifting strategies, with I2S for communication with other modules.
Electric Power Steering (EPS)
Its high-speed processing and 256K RAM support torque sensor algorithms and motor control, ensuring smooth and responsive steering.
Hybrid Vehicle Controllers
The 3.15V-5.5V range accommodates both 3.3V and 5V logic, simplifying integration in hybrid powertrain systems.
Industrial Automation Controllers
The wide voltage range and DMA make it suitable for PLCs and industrial robots, handling multiple I/O and communication protocols.
- Q: What core does the SPC5745BK1CMH2 use?
- A: It is based on the e200z4 core, operating at 120MHz.
- Q: What is the supply voltage range?
- A: It operates from 3.15V to 5.5V, suitable for automotive power systems.
- Q: How much flash and RAM are available?
- A: It provides 2MB of program memory and 256K x 8 of RAM.
- Q: What package is this device offered in?
- A: It comes in a 100-LFBGA package.
- Q: What are the key integrated peripherals?
- A: It includes DMA, I2S, POR, and WDT.
