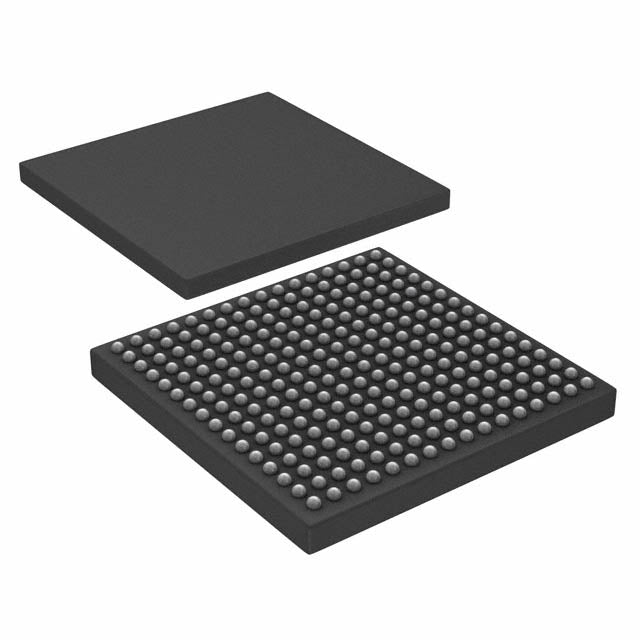

NXP USA Inc. SPC5747CK1CMJ2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $85.61 | $85.61 |
| 15+ | $19.69 | $295.35 |
| 25+ | $19.26 | $481.50 |
| 50+ | $18.19 | $909.50 |
| 100+ | $16.05 | $1,605.00 |
| N+ | $3.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | MPC57xx |
| Packaging | Bulk | Bulk |
| Core Processor | e200z2, e200z4 |
| Core Size | 32-Bit Dual-Core |
| Speed | 80MHz/120MHz |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Number of I/O | 178 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 80x10b, 64x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Package / Case | 256-LBGA |
| ROHS |  |
The NXP SPC5747CK1CMJ2 is a robust dual-core microcontroller for demanding automotive and industrial environments. Combining e200z2 (80MHz) and e200z4 (120MHz) cores, it offers 4MB flash and 512KB RAM. Operating from 3V to 5.5V, it integrates DMA, LVD, POR, and WDT for enhanced reliability. The 256-LBGA package provides excellent thermal performance and routing flexibility.
- Asymmetric dual-core: Run safety-critical and application tasks independently, reducing interference.
- High memory density: 4MB flash eliminates external storage for most applications.
- Extended temperature range: -40°C to 85°C ensures operation in extreme climates.
- Integrated safety features: LVD and POR prevent data corruption during power anomalies.
Automotive Gateway Modules
Dual-core e200z2/z4 at 80/120MHz handles CAN-FD and Ethernet bridging with 4MB flash for protocol stacks.
Industrial Motor Control
512KB RAM enables high-resolution FOC algorithms; 3-5.5V supply works with 12V/24V industrial drives.
Off-Highway Vehicle Electronics
256-LBGA package withstands vibration; -40°C operation suits cold-climate construction equipment.
Power Train Control
LVD and POR ensure safe shutdown during cranking voltage dips; WDT monitors software execution.
Smart Factory Sensors
DMA offloads sensor data acquisition, freeing cores for predictive maintenance algorithms.
EV Charging Stations
5.5V tolerance handles noisy power lines; dual cores isolate communication and safety functions.
- Q: What is the difference between this and the -R version?
- A: The -R suffix indicates tape-and-reel packaging; this version is tray packaging. Electrical specs are identical.
- Q: What voltage does it require?
- A: 3V to 5.5V, compatible with standard automotive battery systems.
- Q: Can it run two operating systems?
- A: Yes, the dual-core design supports asymmetric multiprocessing (AMP) for separate OS instances.
- Q: What is the maximum junction temperature?
- A: Operating temperature is -40°C to 85°C ambient (TA).
- Q: Does it have built-in watchdog?
- A: Yes, includes WDT along with DMA, LVD, and POR.
