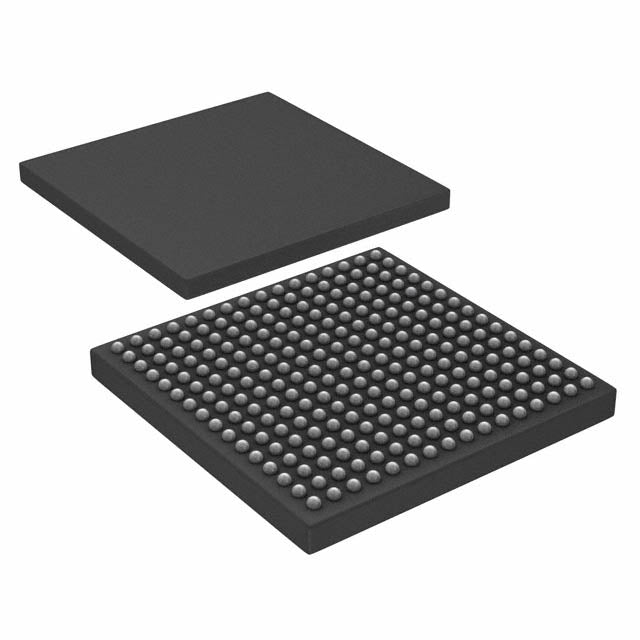

NXP USA Inc. SPC5747CK1VMJ6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94.21 | $94.21 |
| 15+ | $21.67 | $325.05 |
| 25+ | $21.20 | $530.00 |
| 50+ | $20.02 | $1,001.00 |
| 100+ | $17.66 | $1,766.00 |
| N+ | $3.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | MPC57xx |
| Packaging | Bulk | Bulk |
| Core Processor | e200z2, e200z4 |
| Core Size | 32-Bit Dual-Core |
| Speed | 80MHz/160MHz |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Number of I/O | 178 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 80x10b, 64x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Package / Case | 256-LBGA |
| ROHS |  |
The NXP SPC5747CK1VMJ6 is a high-reliability dual-core MCU designed for automotive and industrial safety. It combines e200z2 and e200z4 cores running at 80/160MHz, with 4MB flash and 512KB RAM. The device includes DMA, LVD, POR, and WDT for robust operation. Housed in a 256-LBGA package, it operates from -40°C to 105°C and supports 3V to 5.5V supplies.
- Dual-Core Performance: e200z2 and e200z4 cores enable parallel processing for safety and performance.
- Large Flash: 4MB memory stores complex application code and data tables.
- Safety Features: LVD, POR, and WDT enhance system reliability in harsh environments.
- Wide Voltage Range: 3V-5.5V supply flexibility simplifies power design.
Automotive Engine Control
The dual-core e200z2/e200z4 architecture at 160MHz handles real-time combustion and emission algorithms with 4MB flash for calibration data.
Electric Power Steering
Fast interrupt response and 512KB RAM support torque sensor processing and motor control loops with high precision.
Industrial Automation
With 3V-5.5V supply and robust DMA, it manages multi-axis motion control and safety-critical I/O in factory robots.
Battery Management Systems
LVD and POR features ensure reliable voltage monitoring in EV battery packs, while WDT prevents software lockups.
Aerospace Actuators
The 256-LBGA package and wide temperature range suit flight control actuators requiring deterministic response.
Railway Signaling
Dual-core lockstep capability (via e200z2) provides redundancy for fail-safe railway interlocking systems.
