NXP USA Inc. SPC5747GK1CKU6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 94.17 | Dhs. 94.17 |
| 15+ | Dhs. 91.19 | Dhs. 1,367.85 |
| 25+ | Dhs. 89.21 | Dhs. 2,230.25 |
| 50+ | Dhs. 84.25 | Dhs. 4,212.50 |
| 100+ | Dhs. 74.34 | Dhs. 7,434.00 |
| N+ | Dhs. 14.87 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The SPC5747GK1CKU6 is a high-performance 32-bit tri-core microcontroller from NXP USA Inc., part of the renowned MPC57xx series. This advanced microcontroller features three powerful cores (e200z2, e200z4, e200z4) operating at speeds up to 80MHz/160MHz, making it ideal for demanding automotive and industrial applications that require robust processing capabilities and real-time performance.
Key Features & Benefits
- Tri-Core Architecture: Three independent 32-bit cores deliver exceptional parallel processing power for complex automotive control systems
- Extensive Memory: 4MB Flash memory and 768KB RAM provide ample space for sophisticated applications and data storage
- Rich Connectivity: Supports CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, and USB OTG for versatile communication options
- Advanced Peripherals: Integrated DMA, LVD, POR, and WDT enhance system reliability and performance
- High I/O Count: 129 I/O pins offer maximum flexibility for interfacing with external devices and sensors
- Precision Data Conversion: Multiple A/D converters (80x10-bit, 64x12-bit) enable accurate analog signal processing
- Wide Operating Range: Functions reliably from -40°C to 85°C with a voltage supply range of 3V to 5.5V
- RoHS Compliant: Environmentally friendly design meets international standards
Applications
The SPC5747GK1CKU6 microcontroller is perfectly suited for:
- Automotive engine control units (ECUs)
- Advanced driver assistance systems (ADAS)
- Body control modules
- Industrial automation and control systems
- Motor control applications
- Safety-critical embedded systems
Technical Specifications Summary

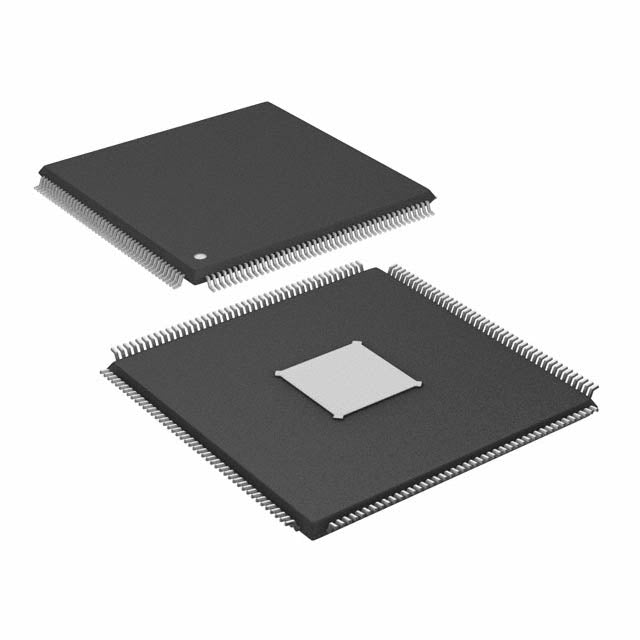

This surface-mount microcontroller comes in a compact 176-LQFP (24x24) package with exposed pad for enhanced thermal performance. The internal oscillator simplifies system design while the comprehensive peripheral set including DMA controllers ensures efficient data handling. With its combination of processing power, memory capacity, and connectivity options, the SPC5747GK1CKU6 represents an excellent choice for next-generation embedded applications.
Why Choose HQICKEY?
At HQICKEY, we specialize in providing high-quality electronic components with competitive pricing and reliable service. Our extensive inventory ensures fast delivery, and our technical support team is ready to assist with your project requirements.
Related Resources
Explore more products and resources:
- Microcontrollers Collection - Discover our full range of microcontroller solutions
- HQICKEY Home - Browse thousands of electronic components and semiconductors
- Technical Blog & News - Stay updated with the latest industry insights and product announcements
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | MPC57xx |
| Packaging | Bulk | Bulk |
| Core Processor | e200z2, e200z4, e200z4 |
| Core Size | 32-Bit Tri-Core |
| Speed | 80MHz/160MHz |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Number of I/O | 129 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 768K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 80x10b, 64x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP Exposed Pad |
| ROHS |  |
