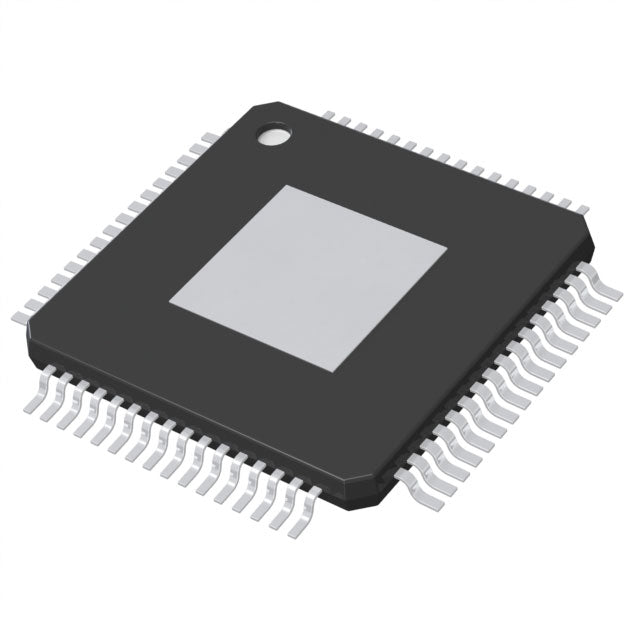

STMicroelectronics SPC584B70E1NHC0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.55 | $27.55 |
| 15+ | $18.11 | $271.65 |
| 25+ | $17.71 | $442.75 |
| 50+ | $16.73 | $836.50 |
| 100+ | $14.76 | $1,476.00 |
| N+ | $2.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC58 4B-Line |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | e200z420 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Number of I/O | 44 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-eTQFP (10x10) |
| Package / Case | 64-TQFP Exposed Pad |
| ROHS |  |
The SPC584B70E1NHC0X from STMicroelectronics is a high-performance automotive MCU featuring an e200z420 core at 120MHz. With 2MB flash and 128KB RAM, it delivers reliable processing for demanding applications. Its wide supply voltage range and robust DMA/POR/WDT features ensure dependable operation in harsh environments.
- High-speed processing: 120MHz e200z420 core accelerates complex control loops.
- Large memory: 2MB flash enables extensive application code storage.
- Wide voltage tolerance: 1.14V-5.5V simplifies power supply design.
- Extended temperature range: -40°C to 125°C suits automotive and industrial use.
Automotive Engine Control Units
120MHz e200z420 core with 2MB flash handles real-time combustion algorithms.
Industrial Robotics
Wide voltage range (1.14V-5.5V) ensures stable operation in noisy factory environments.
Smart Grid Meters
DMA and WDT enhance data integrity for continuous metering operations.
Medical Monitoring Devices
Extended temperature range (-40°C to 125°C) suits sterilization processes.
Avionics Actuators
POR and WDT provide fail-safe operation in critical flight systems.
EV Battery Management
Robust I/O with 5.5V tolerance interfaces directly with analog front-ends.
- Q: What is the operating voltage range?
- A: 1.14V to 5.5V, supporting flexible power designs.
- Q: What core does it use?
- A: e200z420 core running at 120MHz.
- Q: What is the program memory size?
- A: 2MB flash with 128KB RAM.
- Q: What package is available?
- A: 64-TQFP Exposed Pad.
- Q: What is the temperature range?
- A: -40°C to 125°C (TA).
