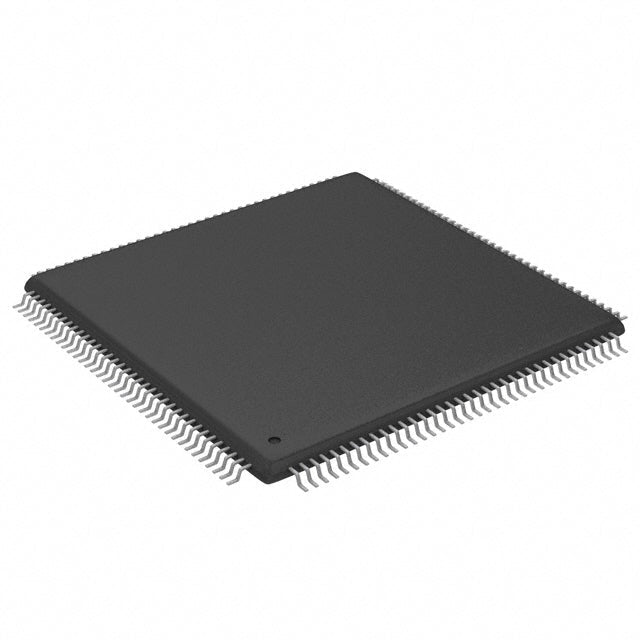

STMicroelectronics SPC584B70E5CD00X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.85 | $45.85 |
| 15+ | $10.54 | $158.10 |
| 25+ | $10.31 | $257.75 |
| 50+ | $9.74 | $487.00 |
| 100+ | $8.60 | $860.00 |
| N+ | $1.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC58 4B-Line |
| Packaging | Bulk | NULL |
| Core Processor | e200z420 |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Number of I/O | - |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 10/12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-eTQFP (20x20) |
| Package / Case | 144-TQFP Exposed Pad |
| ROHS |  |
The STMicroelectronics SPC584B70E5CD00X is a 32-bit automotive-grade MCU based on the e200z420 core, running at 80MHz. It offers 2MB of flash and 192KB of RAM, with a wide supply range of 3V to 5.5V. The device includes DMA, POR, and WDT, and is packaged in a 144-TQFP with exposed pad for enhanced thermal performance. It is designed for harsh environments with an operating temperature range of -40°C to 105°C.
- Automotive-grade 105°C operation: Reliable in extreme heat conditions.
- Wide 3V-5.5V supply: Simplifies power design and supports direct battery connection.
- 2MB flash / 192KB RAM: Ample storage for complex applications and data logging.
- Exposed pad package: Improves heat dissipation for high-power applications.
Automotive Engine Control Units (ECU)
The 5.5V tolerance and 105°C rating make it suitable for under-hood environments, while 2MB flash stores complex calibration maps.
Industrial Robotics
The e200z420 core with DMA handles multi-axis motion planning and sensor fusion at 80MHz, ensuring smooth trajectory control.
Power Inverters for Solar
Wide voltage range and robust WDT provide reliable operation in grid-tie inverters, with 192KB RAM for real-time MPPT algorithms.
Construction Equipment Displays
The exposed-pad TQFP aids thermal dissipation in sealed cabins, and the 105°C rating withstands direct sunlight exposure.
Medical Ventilators
Deterministic interrupt handling and POR ensure safe startup and continuous operation in life-critical respiratory devices.
Smart Battery Management Systems
The 3V-5.5V range directly interfaces with 12V lead-acid or Li-ion stacks, simplifying level-shifting circuitry.
- Q: What is the core architecture of the SPC584B70E5CD00X?
- A: It uses the e200z420 Power Architecture core.
- Q: What is the maximum operating frequency?
- A: The core runs at up to 80MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: How much flash memory is integrated?
- A: It has 2MB of flash memory.
- Q: What package is used?
- A: It comes in a 144-TQFP with exposed pad.
