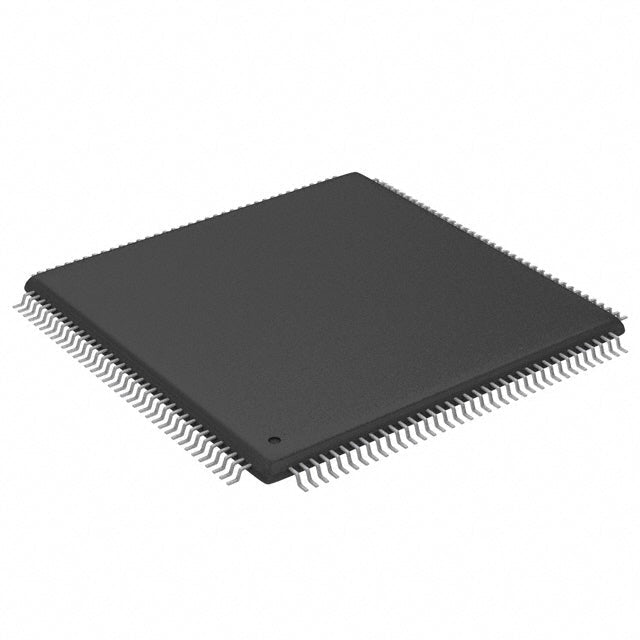

STMicroelectronics SPC584B70E5NMC0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $56.59 | $56.59 |
| 15+ | $13.02 | $195.30 |
| 25+ | $12.74 | $318.50 |
| 50+ | $12.03 | $601.50 |
| 100+ | $10.61 | $1,061.00 |
| N+ | $2.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC58 4B-Line |
| Packaging | Bulk | NULL |
| Core Processor | e200z420 |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Number of I/O | - |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 10/12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-eTQFP (20x20) |
| Package / Case | 144-TQFP Exposed Pad |
| ROHS |  |
The SPC584B70E5NMC0X from STMicroelectronics is a 32-bit automotive MCU featuring the e200z420 core at 120MHz. It offers 2MB flash and 192KB RAM in a 144-TQFP exposed pad package. Operating from 3V to 5.5V, it is rated for -40°C to 125°C. Integrated DMA, POR, and WDT ensure robust performance in harsh environments.
- High-temperature: 125°C rating for extreme environments.
- Large memory: 2MB flash for extensive firmware.
- Wide voltage: 3V-5.5V supply flexibility.
- Advanced package: 144-TQFP with exposed pad for thermal management.
Automotive Engine Control
Rated to 125°C and 120MHz, it handles real-time engine management with 2MB flash for complex algorithms.
Industrial Drives
DMA and PWM support high-frequency inverter control for motor drives.
Safety-Critical Systems
With POR and WDT, it meets functional safety requirements for industrial and automotive.
Power Conversion
Wide voltage range (3V-5.5V) and robust design suit solar inverters and UPS systems.
Construction Equipment
High-temperature operation and 144-pin package enable rugged control units.
Railway Signaling
Reliable operation in extreme temperatures with deterministic processing.
- Q: What is the core processor?
- A: e200z420 at 120MHz.
- Q: What is the flash size?
- A: 2MB.
- Q: What is the RAM size?
- A: 192KB.
- Q: What is the package?
- A: 144-TQFP Exposed Pad.
