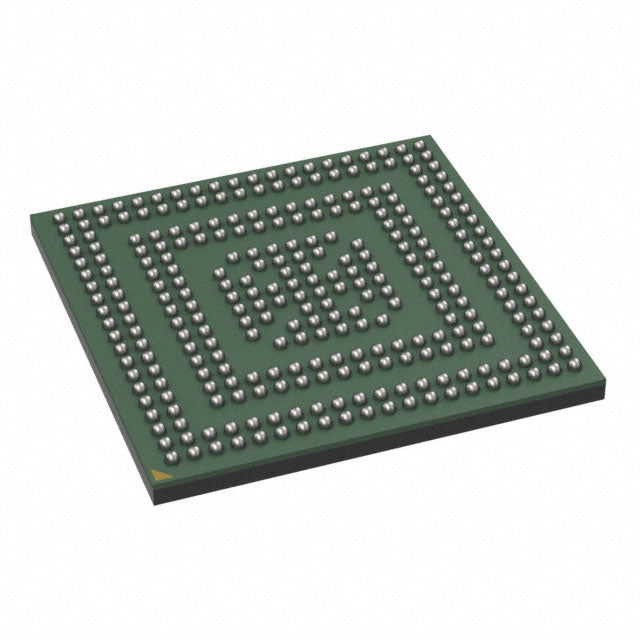

STMicroelectronics SPC58EC80C3NEC1X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $88.83 | $88.83 |
| 15+ | $20.43 | $306.45 |
| 25+ | $19.99 | $499.75 |
| 50+ | $18.88 | $944.00 |
| 100+ | $16.66 | $1,666.00 |
| N+ | $3.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC58 |
| Packaging | Bulk | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Dual-Core |
| Speed | 120MHz |
| Connectivity | Ethernet, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, Temp Sensor, WDT |
| Number of I/O | - |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 10/12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 292-FPBGA (17x17) |
| Package / Case | 292-FBGA |
| ROHS |  |
The STMicroelectronics SPC58EC80C3NEC1X is a high-performance automotive microcontroller featuring a 120MHz e200z4 core. It offers 4MB of flash and 512KB of RAM, designed for demanding powertrain and body applications. With a 3V to 5.5V supply range and 292-FBGA package, it provides a compact, high-density solution. Its operating temperature range of -40°C to 125°C ensures reliability in extreme conditions.
- High-Temperature Operation: Rated for 125°C, ideal for under-hood automotive applications.
- Powerful Core: 120MHz e200z4 provides ample processing headroom for complex control loops.
- Large Memory: 4MB flash and 512KB RAM support extensive application code and data.
- Integrated Safety Features: POR, temp sensor, and WDT enhance system reliability.
Engine Control Units (ECU)
The 120MHz e200z4 core and 4MB flash handle complex fuel injection and ignition timing algorithms.
Transmission Control
Its high-temperature rating (125°C) and robust PWM modules enable reliable solenoid control in harsh under-hood conditions.
Electric Vehicle Battery Management
The integrated temp sensor and DMA support precise cell voltage and temperature monitoring.
Industrial Robotics
With 512KB RAM, it can manage multi-axis motion control and real-time communication protocols.
Aerospace Actuators
The wide voltage range and safety features make it suitable for redundant flight control systems.
Off-Highway Vehicle Displays
Its processing power supports graphical user interfaces and CAN communication in ruggedized dashboards.
- Q: What core does the SPC58EC80C3NEC1X use?
- A: It is based on the e200z4 core, a Power Architecture-based processor.
- Q: What is the maximum operating temperature?
- A: It can operate up to 125°C, making it suitable for high-temperature environments.
- Q: How much flash memory is available?
- A: It provides 4MB of program flash.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
