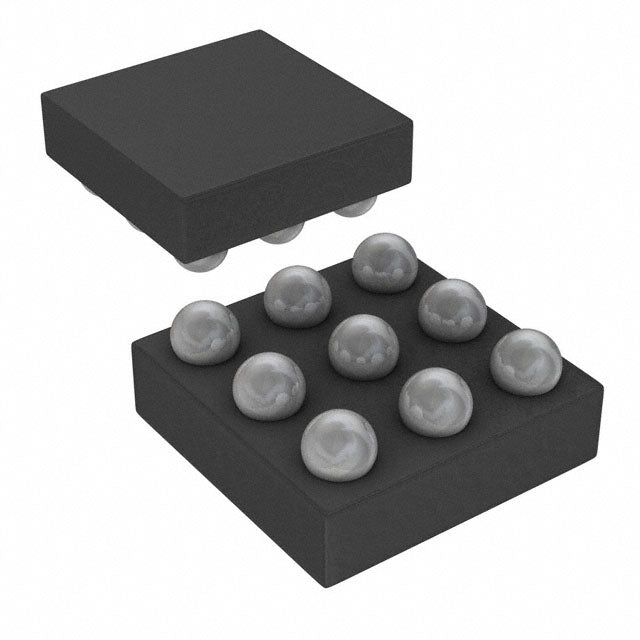

Analog Devices Inc. SSM2517CBZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.05 | $1.05 |
| 15+ | $1.02 | $15.30 |
| 25+ | $1.00 | $25.00 |
| 50+ | $0.94 | $47.00 |
| 100+ | $0.83 | $83.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Part Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 2.4W x 1 @ 4Ohm |
| Voltage - Supply | 2.5V ~ 5.5V |
| Features | Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 9-WLCSP (1.46x1.46) |
| Package / Case | 9-WFBGA, WLCSP |
| ROHS |  |
This mono Class D audio amplifier delivers 2.4W into 4Ω loads from a 2.5V to 5.5V supply. Featuring digital inputs, it integrates seamlessly with modern audio processors. Built-in short-circuit and thermal protection ensure reliable operation, while the ultra-compact 9-WLCSP package saves critical board space. Ideal for portable speakers, smartphones, and IoT audio devices requiring high efficiency and small size.
- High Efficiency: Class D operation minimizes power loss and heat generation.
- Digital Inputs: Direct connection to digital audio sources reduces component count.
- Ultra-Compact Package: 9-WLCSP (1.46x1.46mm) for space-constrained designs.
- Comprehensive Protection: Short-circuit and thermal protection enhance reliability.
Portable Bluetooth Speakers
The SSM2517CBZ-RL's 2.4W output into 4Ω and digital input capability make it ideal for compact Bluetooth speakers requiring high efficiency.
Smartphone Audio Amplification
Its ultra-small 9-WLCSP package and digital interface allow integration into smartphones for loudspeaker amplification.
Portable Gaming Devices
With Class D efficiency and short-circuit protection, this chip is reliable for handheld gaming consoles with built-in speakers.
Alarm and Notification Systems
The shutdown mode and thermal protection make it suitable for battery-powered alarm drivers requiring instant audio output.
IoT Audio Devices
Its small footprint and digital input simplify design in smart home devices like voice assistants and doorbells.
DIY Audio Projects
Hobbyists can use the SSM2517CBZ-RL for building efficient mono amplifiers with minimal external components.
- Q: What is the supply voltage range for the SSM2517CBZ-RL?
- A: It operates from 2.5V to 5.5V, suitable for a wide range of portable devices.
- Q: What output power does it deliver?
- A: It provides 2.4W into 4Ω for mono speaker applications.
- Q: Does it support digital inputs?
- A: Yes, it features digital inputs for direct connection to audio processors.
- Q: What protection features are included?
- A: It includes short-circuit and thermal protection, plus shutdown mode.
- Q: What package is available?
- A: It comes in a 9-WLCSP (1.46x1.46mm) ultra-compact package.
