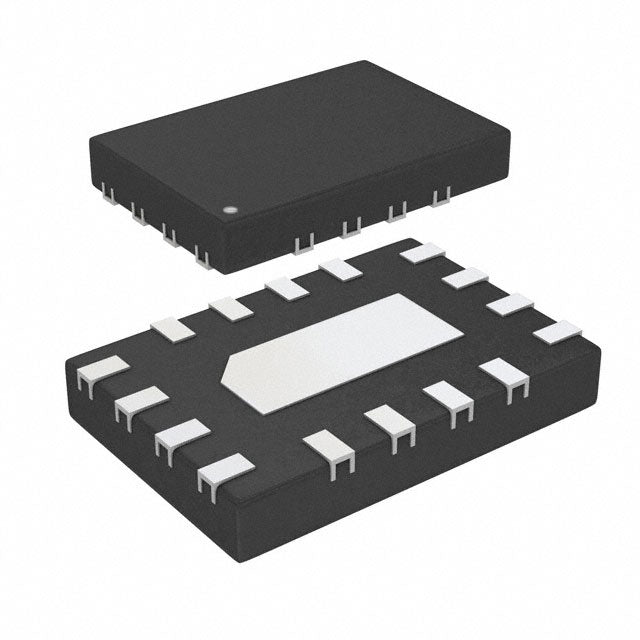

STMicroelectronics STG3692QTR
Regular price
$2.28
Regular price
$1.63
Sale price
$2.28
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.28 | $2.28 |
| 15+ | $1.50 | $22.50 |
| 25+ | $1.47 | $36.75 |
| 50+ | $1.39 | $69.50 |
| 100+ | $1.22 | $122.00 |
| N+ | $0.24 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-UFQFN Exposed Pad |
| ROHS |  |
STG3692QTR.pdf
×
