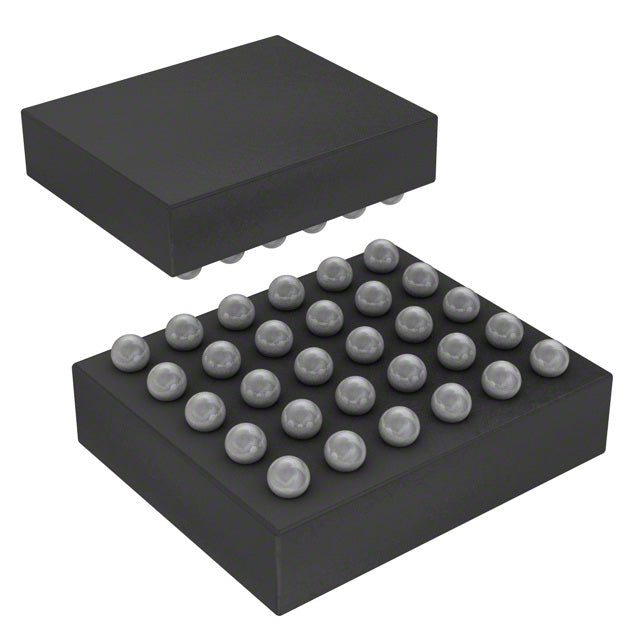

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STMicroelectronics
STG3820BJR
STG3820BJR
Regular price
Dhs. 5.17
Regular price
Dhs. 5.43
Sale price
Dhs. 5.17
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 5.17 AED | Dhs. 5.17 AED |
| 15+ | Dhs. 5.00 AED | Dhs. 75.00 AED |
| 25+ | Dhs. 4.89 AED | Dhs. 122.25 AED |
| 50+ | Dhs. 4.62 AED | Dhs. 231.00 AED |
| 100+ | Dhs. 4.07 AED | Dhs. 407.00 AED |
| N+ | Dhs. 0.81 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 6.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 30-WFBGA, FCBGA |
| Supplier Device Package | 30-WFBGA, FCBGA |
| ROHS |  |
Datasheets:
STG3820BJR
.pdf
×
