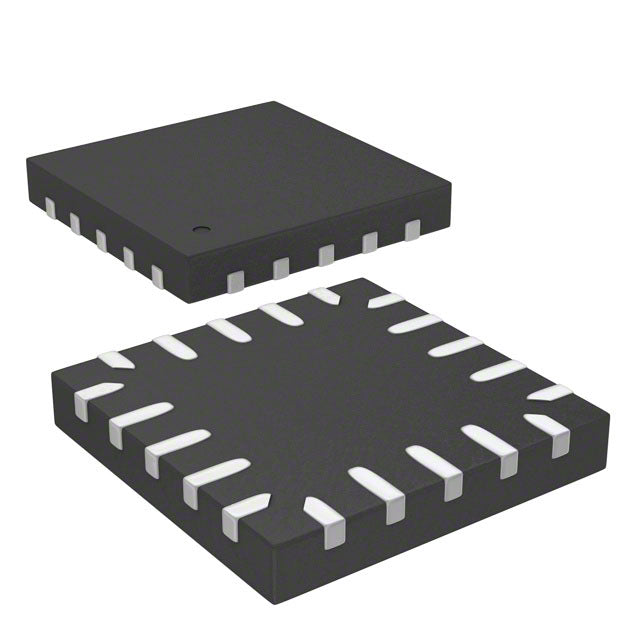

STMicroelectronics STM32C011F4U6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.29 | $1.29 |
| 15+ | $0.85 | $12.75 |
| 25+ | $0.83 | $20.75 |
| 50+ | $0.78 | $39.00 |
| 100+ | $0.69 | $69.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32C0 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 18 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 15x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-UFQFPN (3x3) |
| Package / Case | 20-UFQFN |
| ROHS |  |
The STMicroelectronics STM32C011F4U6TR is a 32-bit ARM Cortex-M0+ microcontroller in a 20-pin UFQFN package. It delivers 48MHz performance with 16KB Flash and 6KB SRAM, operating from 2V to 3.6V. Integrated features include PWM, Brown-out Reset, POR, WDT, and a temperature sensor, making it a powerful yet compact solution for modern embedded designs.
- 48MHz ARM Cortex-M0+: Provides 32-bit performance for complex algorithms and communication stacks.
- 6KB SRAM: Supports larger data buffers and real-time processing.
- Integrated Temperature Sensor: Eliminates the need for external sensing in thermal monitoring applications.
- 20-UFQFN Package: Ultra-compact footprint for miniaturized IoT and wearable devices.
Compact IoT Sensors
Use the 48MHz Cortex-M0+ and 6KB RAM to run lightweight protocols like MQTT over BLE or LoRa in smart building sensors.
Portable Consumer Electronics
Drive e-ink displays and read touch inputs in e-readers and smartwatches, with low power consumption from the 2V supply.
Motor Control for Drones
Generate precise PWM signals for brushless motor ESCs, with the fast core handling real-time control loops.
Industrial Data Loggers
Sample analog signals and store data in Flash, using the Brown-out Reset to prevent corruption during power loss.
Medical Wearables
Monitor heart rate and activity in fitness bands, with the temperature sensor aiding in calibration.
Smart Lighting Systems
Control RGB LED drivers and communicate over I2C/SPI in smart bulbs, with the compact UFQFN package fitting into small form factors.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M0+ core running at up to 48MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: How much Flash and RAM does it have?
- A: It has 16KB Flash and 6KB SRAM.
- Q: What package is available?
- A: It comes in a 20-pin UFQFN package.
- Q: Does it have a temperature sensor?
- A: Yes, it includes an internal temperature sensor along with PWM, WDT, and Brown-out Reset.
