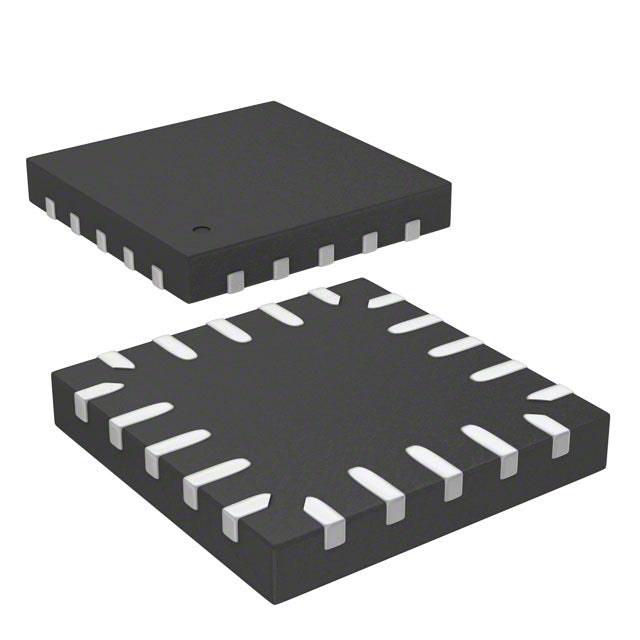

STMicroelectronics STM32C011F6U6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.44 | $1.44 |
| 15+ | $0.95 | $14.25 |
| 25+ | $0.93 | $23.25 |
| 50+ | $0.88 | $44.00 |
| 100+ | $0.77 | $77.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32C0 |
| Packaging | This product has a maximum purchase limit | Cut Tape (CT) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 18 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 15x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-UFQFPN (3x3) |
| Package / Case | 20-UFQFN |
| ROHS |  |
The STMicroelectronics STM32C011F6U6TR is a powerful 32-bit ARM Cortex-M0+ microcontroller in a compact 20-UFQFN package. It features 32KB of flash memory and 6KB of SRAM, operating at up to 48MHz. With a supply voltage of 2V to 3.6V and integrated features like Brown-out Detect, PWM, and a temperature sensor, it delivers high performance in a small footprint for advanced embedded systems.
- High-Performance Core: 48MHz ARM Cortex-M0+ offers superior processing power for complex algorithms.
- Large Memory: 32KB flash and 6KB SRAM support substantial application code and data buffering.
- Rich Analog Features: Includes temperature sensor and multiple PWM channels for versatile control.
- Compact Package: 20-UFQFN saves PCB space while providing ample I/O.
Industrial Sensor Hubs
The 48MHz Cortex-M0+ core and 32KB flash allow for aggregation and processing of multiple sensor inputs in industrial IoT gateways.
Motor Control for Drones
Its high-speed PWM and compact 20-UFQFN package make it suitable for ESC (Electronic Speed Controller) designs in small drones.
Smart Home Bridges
Use its rich peripheral set to interface with Zigbee or Bluetooth modules, creating a central smart home controller.
Portable Test Instruments
The 6KB SRAM and fast ADC enable handheld multimeters or oscilloscopes with real-time data processing.
Automotive Body Electronics
With a -40°C to 85°C range, it can manage window lifts or mirror controls in automotive body modules.
Medical Wearables
Its low power and small size are ideal for continuous glucose monitors or heart rate sensors.
- Q: What core does the STM32C011F6U6TR use?
- A: It uses an ARM Cortex-M0+ core running at up to 48MHz.
- Q: How much flash memory is available?
- A: It has 32KB of flash memory.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: What package is it available in?
- A: It comes in a 20-pin UFQFN package.
- Q: Does it have a temperature sensor?
- A: Yes, it includes an internal temperature sensor.
