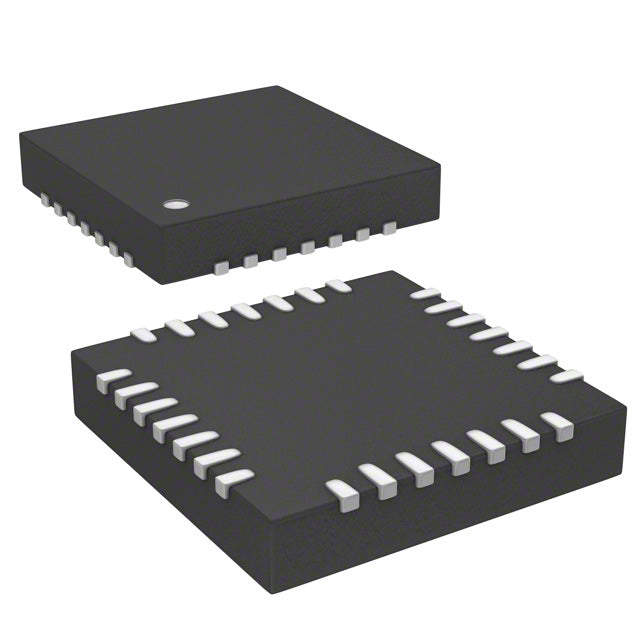

STMicroelectronics STM32F031G6U6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.64 | $3.64 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 13x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UFQFPN (4x4) |
| Package / Case | 28-UFQFN Exposed Pad |
| ROHS |  |
The STM32F031G6U6TR is a 32-bit ARM Cortex-M0 microcontroller from STMicroelectronics, delivering 48MHz performance in a compact 28-UFQFN package. With 32KB flash and 4KB SRAM, it integrates DMA, I2S, PWM, and WDT peripherals. Its 2V to 3.6V supply range makes it ideal for portable and low-power embedded designs.
- ARM Cortex-M0 Efficiency: 32-bit performance with low power consumption for cost-sensitive applications.
- Compact 28-UFQFN Package: Saves PCB space for miniaturized designs.
- Integrated I2S: Simplifies audio system design without external codec interfaces.
- DMA Controller: Reduces CPU load for high-throughput data transfers.
Compact Motor Controllers
The 48MHz Cortex-M0 with PWM timers provides precise control for small BLDC motors in drones or robotics.
Audio Interfaces
I2S peripheral enables direct connection to audio codecs for playback or recording devices.
Portable Instrumentation
Low power consumption and small 28-UFQFN package suit handheld multimeters or data loggers.
Industrial Sensors
DMA and multiple timers allow efficient data acquisition from external ADCs or encoders.
Consumer Electronics
Ideal for smart home devices like thermostats or lighting controllers requiring compact size.
Battery Management Systems
2V minimum supply enables operation from single-cell lithium batteries.
- Q: What core does the STM32F031G6U6TR use?
- A: It is based on the ARM Cortex-M0 core running at up to 48MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V, suitable for standard 3.3V systems.
- Q: How much flash and RAM does it have?
- A: It offers 32KB flash and 4KB SRAM.
- Q: What package is this part?
- A: It comes in a 28-UFQFN package with exposed pad for thermal management.
- Q: Does it support I2S?
- A: Yes, it includes I2S for audio applications.
