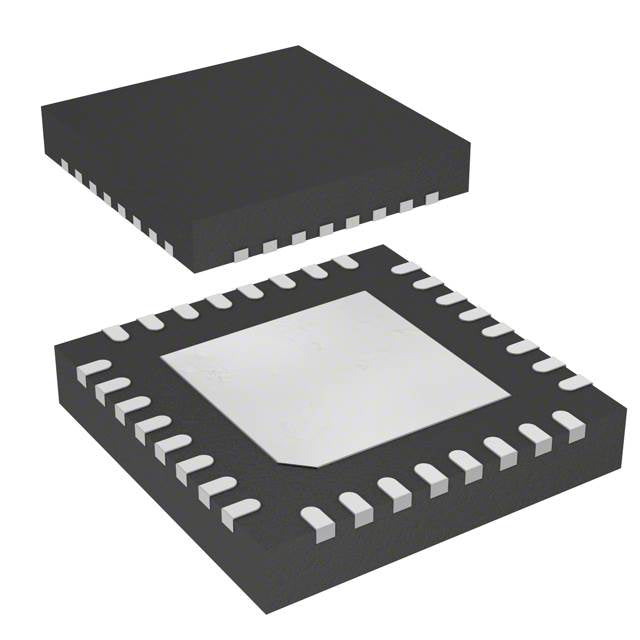

STMicroelectronics STM32F031K6U7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.56 | $3.56 |
| 15+ | $2.34 | $35.10 |
| 25+ | $2.29 | $57.25 |
| 50+ | $2.16 | $108.00 |
| 100+ | $1.91 | $191.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | This product has a maximum purchase limit | Tray |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 13x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-UFQFPN (5x5) |
| Package / Case | 32-UFQFN Exposed Pad |
| ROHS |  |
The STM32F031K6U7 from STMicroelectronics is a 32-bit ARM Cortex-M0 microcontroller running at 48MHz with 32KB Flash and 4KB RAM. It operates from 2V to 3.6V and supports -40°C to 105°C, making it a reliable choice for industrial and consumer applications. The 32-UFQFN package includes DMA, I2S, PWM, and watchdog timers for versatile embedded designs.
- Efficient 32-bit Core: Cortex-M0 provides better performance than 8-bit MCUs at similar cost.
- Rich Peripherals: DMA, I2S, and PWM reduce external components.
- Wide Temperature Range: -40°C to 105°C suits demanding environments.
- Compact Package: 32-UFQFN saves board space.
- Low Power Modes: Multiple sleep modes extend battery life.
Motor Control
PWM timers and I2S support field-oriented control for small BLDC motors.
Consumer Electronics
Low cost and 48MHz speed make it ideal for smart home hubs and remote controls.
Industrial Sensors
DMA and multiple communication interfaces enable high-speed data acquisition.
Power Tools
Robust operation up to 105°C and PWM control handle battery-powered tools.
Medical Monitoring
Low power and compact 32-UFQFN package fit into portable patient monitors.
Lighting Systems
PWM outputs drive LED drivers for architectural and stage lighting.
- Q: What core does it use?
- A: ARM Cortex-M0, a low-power 32-bit core.
- Q: What is the voltage range?
- A: 2V to 3.6V, compatible with standard 3.3V systems.
- Q: What is the maximum speed?
- A: 48MHz, providing good performance for its class.
- Q: How much memory is available?
- A: 32KB Flash and 4KB RAM.
- Q: What is the operating temperature?
- A: -40°C to 105°C, suitable for most industrial applications.
