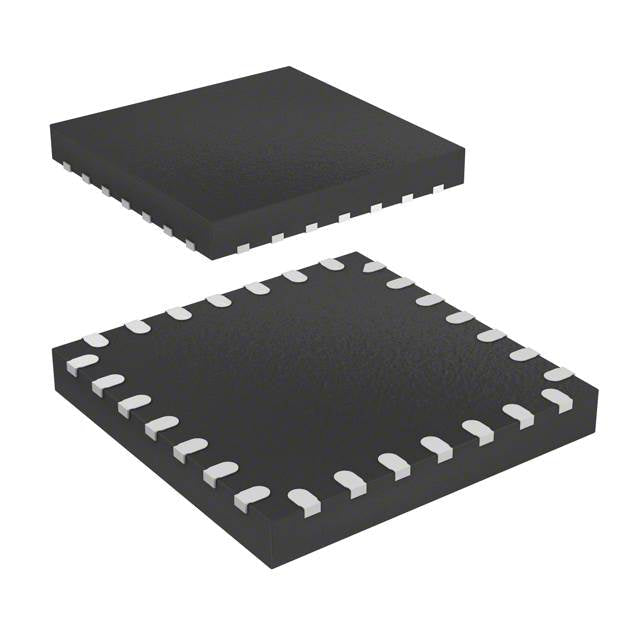

STMicroelectronics STM32F038G6U6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.91 | $2.91 |
| 15+ | $1.91 | $28.65 |
| 25+ | $1.87 | $46.75 |
| 50+ | $1.77 | $88.50 |
| 100+ | $1.56 | $156.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 1.65V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UFQFPN (5x5) |
| Package / Case | 28-UFQFN |
| ROHS |  |
The STM32F038G6U6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M0 core running at 48 MHz. It offers 32 KB of Flash and 4 KB of SRAM, along with a rich set of peripherals including I2C, SPI, UART, I2S, DMA, and a 12-bit ADC. Its wide voltage range and compact UFQFPN package make it an excellent choice for a variety of embedded applications, from industrial sensors to portable consumer electronics.
- Efficient 32-bit Core: The ARM Cortex-M0 provides a modern architecture with low power consumption and high code density.
- Compact Package: The 5x5 mm UFQFPN package saves board space, ideal for miniaturized designs.
- Rich Analog Features: Integrated 12-bit ADC with 10 channels simplifies analog sensor interfacing.
- Flexible Power Supply: Operates from 1.65V to 3.6V, supporting both battery and regulated power sources.
- Advanced Peripherals: DMA, I2S, and PWM enable efficient data handling and control in real-time applications.
Industrial Sensor Nodes
The STM32F038G6U6 with its low-voltage operation and multiple ADC channels is ideal for industrial sensor nodes that require precise analog data acquisition and low-power operation.
Portable Medical Devices
Its small form factor and low power consumption make it suitable for portable medical monitors, such as glucose meters or pulse oximeters, where battery life is critical.
Smart Home Controllers
With I2C, SPI, and UART interfaces, this MCU can manage smart home devices like thermostats, lighting controls, and security sensors, enabling seamless connectivity.
Motor Control for Drones
The PWM outputs and DMA controller allow for efficient motor control in small drones, providing smooth and responsive speed regulation.
Data Loggers
Its internal oscillator and low-power modes make it perfect for battery-powered data loggers that record environmental parameters over extended periods.
- Q: What is the core architecture of the STM32F038G6U6?
- A: It is based on the ARM Cortex-M0 32-bit core, offering a balance of performance and power efficiency.
- Q: What is the maximum operating frequency?
- A: The MCU runs at up to 48 MHz, suitable for a wide range of control and sensor applications.
- Q: How much Flash and RAM does it have?
- A: It provides 32 KB of Flash memory and 4 KB of SRAM for code and data storage.
- Q: What are the key peripheral interfaces?
- A: It includes I2C, SPI, UART, I2S, DMA, PWM, and a 12-bit ADC with 10 channels.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, allowing flexible power supply designs.
- Q: What is the package type?
- A: It comes in a compact 28-UFQFPN (5x5 mm) package, ideal for space-constrained designs.
