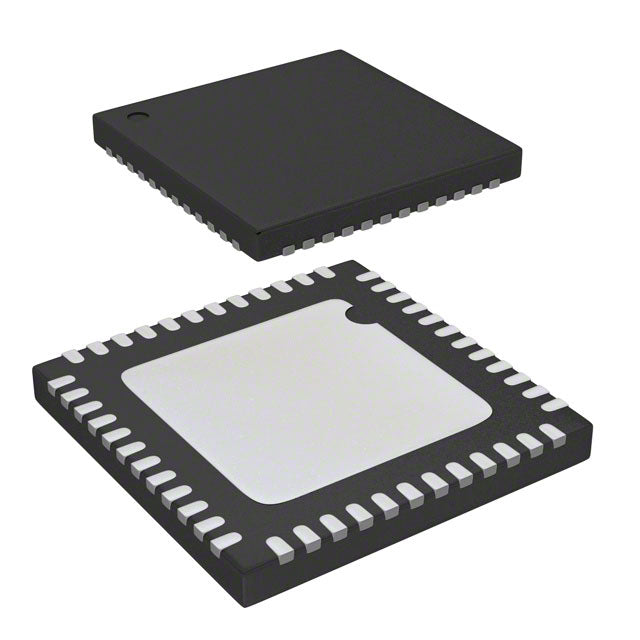

STMicroelectronics STM32F071CBU6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.03 | $6.03 |
| 15+ | $3.97 | $59.55 |
| 25+ | $3.88 | $97.00 |
| 50+ | $3.66 | $183.00 |
| 100+ | $3.23 | $323.00 |
| N+ | $0.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 13x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-UFQFPN (7x7) |
| Package / Case | 48-UFQFN Exposed Pad |
| ROHS |  |
The STM32F071CBU6 is a 32-bit ARM Cortex-M0 microcontroller from STMicroelectronics, running at 48MHz. It offers 128KB flash and 16KB RAM, with a supply range of 1.65V to 3.6V. The 48-UFQFN package includes DMA, I2S, PWM, and multiple low-power modes, making it a flexible choice for cost-sensitive and portable applications.
- Ultra-Low Voltage: Operates down to 1.65V, enabling single-cell battery designs.
- Compact Package: 48-UFQFN with exposed pad for thermal performance and space savings.
- Rich Audio Support: I2S interface simplifies audio codec integration.
- Efficient DMA: Reduces CPU overhead for data streaming and peripheral management.
- Cost-Effective 32-bit: Cortex-M0 core provides 32-bit performance at 8-bit price points.
Portable Consumer Electronics
Low voltage (1.65V) and small 48-UFQFN package enable compact battery-powered devices.
Audio Processing
I2S interface and DMA support digital audio streaming and playback.
Sensor Hubs
Multiple communication interfaces and low power make it ideal for aggregating sensor data.
Industrial Sensors
Wide voltage range and robust peripherals suit 4-20mA loop-powered transmitters.
Smart Home Devices
PWM and GPIOs control lighting, thermostats, and security sensors.
Wearable Health Monitors
Ultra-low voltage operation extends battery life in fitness trackers and medical patches.
- Q: What is the core architecture?
- A: It uses an ARM Cortex-M0 core running at up to 48MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.65V to 3.6V, supporting low-voltage applications.
- Q: How much flash and RAM does it have?
- A: It features 128KB flash and 16KB RAM, suitable for moderate complexity.
- Q: Does it support I2S?
- A: Yes, it includes I2S for audio applications, along with DMA and PWM.
