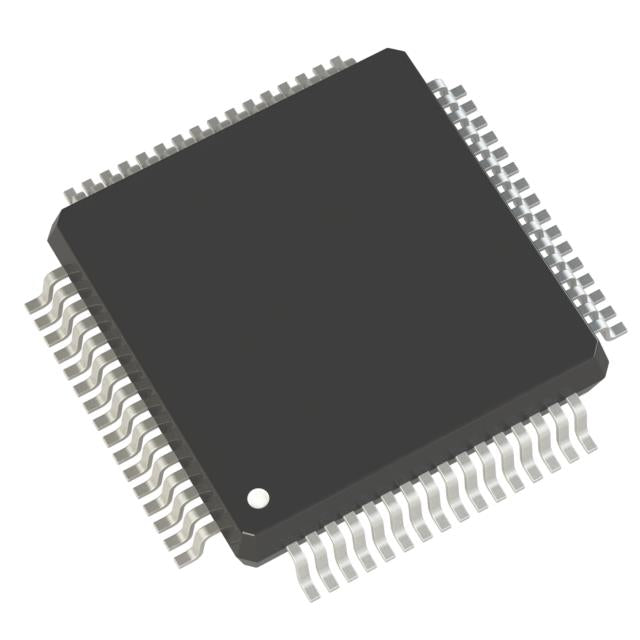

STMicroelectronics STM32F078RBT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.27 | $7.27 |
| 15+ | $4.77 | $71.55 |
| 25+ | $4.67 | $116.75 |
| 50+ | $4.41 | $220.50 |
| 100+ | $3.89 | $389.00 |
| N+ | $0.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 1.65V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32F078RBT6 from STMicroelectronics is a high-performance ARM Cortex-M0 microcontroller designed for cost-sensitive yet feature-rich embedded applications. Operating at up to 48MHz, it delivers 128KB of flash and 16KB of SRAM in a compact 64-LQFP package. Its flexible 1.65V to 3.6V supply range supports both battery and standard 3.3V systems. Integrated peripherals include DMA, I2S, PWM timers, and a watchdog, making it ideal for industrial, consumer, and IoT devices.
- Ultra-low voltage operation down to 1.65V – enables direct power from single-cell batteries, simplifying power design.
- 128KB flash with 48MHz Cortex-M0 – provides ample code space and efficient processing for complex control loops.
- Integrated I2S and DMA – supports high-throughput audio and sensor data streaming without CPU intervention.
- Wide temperature range (-40°C to 85°C) – ensures reliable operation in harsh industrial environments.
Industrial Sensor Hub
With 128KB flash and 16KB RAM, the STM32F078RBT6 can aggregate multiple analog and digital sensors, using its DMA to stream data without CPU overhead.
Portable Medical Monitor
The low 1.65V supply voltage enables direct battery operation, while the Cortex-M0 core ensures efficient processing for vital sign algorithms.
Motor Control for Small Appliances
Its PWM timers and WDT provide reliable pulse generation and system supervision for brushless DC motor drives in compact appliances.
Audio Interface Module
The integrated I2S peripheral supports digital audio streaming, making it suitable for low-cost USB audio or Bluetooth audio bridges.
Smart Lighting Controller
Multiple PWM channels allow precise dimming and color mixing for LED lighting, with the POR ensuring clean startup on power application.
Data Logger
The combination of DMA and low-power modes enables long-term data capture to external memory with minimal battery drain.
- Q: What is the operating voltage range of the STM32F078RBT6?
- A: It operates from 1.65V to 3.6V, with a separate range of 1.65V to 1.95V for specific peripherals.
- Q: What core does this MCU use?
- A: It is based on the ARM Cortex-M0 core running at up to 48MHz.
- Q: How much flash and RAM does it have?
- A: It provides 128KB of flash memory and 16KB of SRAM.
- Q: What package is available?
- A: It comes in a 64-pin LQFP package.
- Q: What are the key integrated features?
- A: It includes DMA, I2S, POR, PWM, and WDT peripherals.
