STMicroelectronics STM32F098RCH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.41 | $6.41 |
| 15+ | $4.21 | $63.15 |
| 25+ | $4.12 | $103.00 |
| 50+ | $3.89 | $194.50 |
| 100+ | $3.44 | $344.00 |
| N+ | $0.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 1.65V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

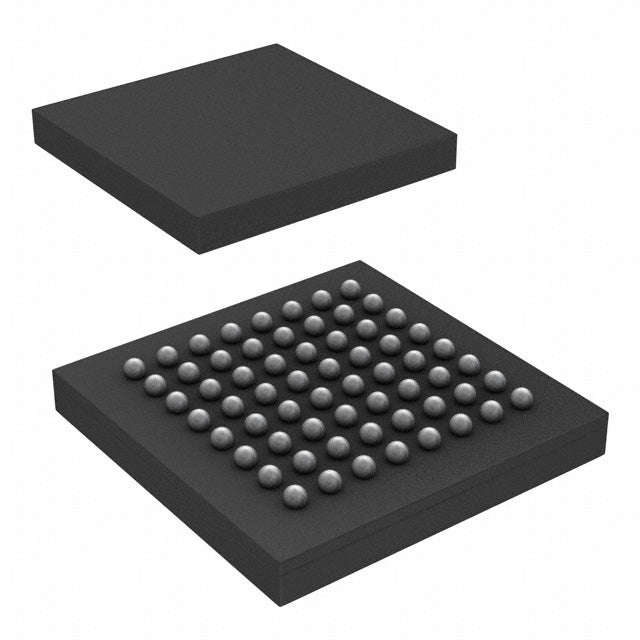

| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
The STM32F098RCH6 from STMicroelectronics is a 32-bit ARM Cortex-M0 microcontroller with 256KB flash and 32KB RAM. It operates from 1.65V to 3.6V and runs at 48MHz. The 64-UFBGA package is ideal for space-constrained designs. It includes DMA, I2S, POR, PWM, and WDT peripherals, making it versatile for industrial and consumer applications.
- Ultra-low voltage operation (1.65V): Enables single-cell battery designs.
- Large 256KB flash: Supports complex firmware and protocol stacks.
- I2S interface: Simplifies audio system integration.
- Compact 64-UFBGA: Reduces PCB footprint for miniaturized products.
Battery-Powered IoT Sensors
The 1.65V minimum supply allows direct operation from a single alkaline cell, extending battery life.
Portable Audio Devices
I2S interface connects directly to audio codecs for high-quality playback.
Industrial Sensor Hubs
DMA and PWM enable efficient data acquisition and actuator control without CPU loading.
Wearable Health Monitors
Small UFBGA package and low-voltage operation fit compact, power-constrained designs.
Smart Home Controllers
256KB flash supports complex protocol stacks for Zigbee or Thread connectivity.
Motor Control for Drones
48MHz Cortex-M0 with PWM and WDT provides reliable ESC (electronic speed controller) operation.
- Q: What core does the STM32F098RCH6 use?
- A: It uses an ARM Cortex-M0 core running at up to 48MHz.
- Q: What is the supply voltage range?
- A: It supports 1.65V to 1.95V and 1.65V to 3.6V, enabling low-voltage operation.
- Q: How much flash memory is available?
- A: It has 256KB of flash memory.
- Q: What package is this device offered in?
- A: It comes in a 64-pin UFBGA package.
- Q: Does it support I2S?
- A: Yes, it includes I2S for digital audio interfacing.
