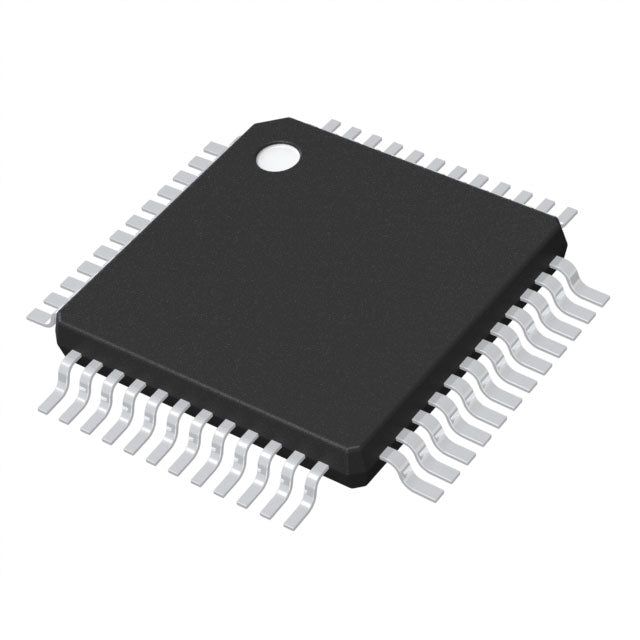

STMicroelectronics STM32F100C4T6BTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.68 | $5.68 |
| 15+ | $3.74 | $56.10 |
| 25+ | $3.65 | $91.25 |
| 50+ | $3.45 | $172.50 |
| 100+ | $3.05 | $305.00 |
| N+ | $0.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 37 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Package / Case | 48-LQFP |
| ROHS |  |
The STM32F100C4T6BTR is a 32-bit microcontroller from STMicroelectronics, based on the ARM® Cortex®-M3 core at 24 MHz. It provides 16KB Flash and 4KB RAM, operating from 2V to 3.6V. In a 48-LQFP package, it includes DMA, PWM, PVD, and a temperature sensor, offering a cost-effective solution for entry-level embedded applications.
- ARM Cortex-M3 core – Industry-standard architecture with extensive tool support and scalability.
- Low voltage operation (2V) – Enables battery-powered designs with minimal power consumption.
- Integrated temperature sensor – Eliminates external sensors for thermal monitoring, saving cost.
- DMA controller – Reduces CPU overhead for data transfers, improving efficiency.
- Compact 48-LQFP package – Suitable for space-constrained PCBs with moderate I/O needs.
Simple Motor Control
With PWM and 24 MHz speed, it drives small DC motors in toys and pumps with basic speed control.
Sensor Interfaces
Multiple GPIOs and DMA enable reading from analog sensors and transmitting data to a host controller.
Battery Management
Low 2V operation and low-power modes make it ideal for monitoring battery voltage and temperature in portable devices.
Lighting Systems
PWM outputs control LED brightness in smart lighting, with PVD for reliable power monitoring.
Consumer Appliances
Cost-effective 16KB Flash is perfect for simple logic in coffee makers and air purifiers.
Educational Kits
Easy-to-use ARM core and rich peripherals make it a great platform for learning embedded systems.
- Q: What core does the STM32F100C4T6BTR use?
- A: It uses an ARM® Cortex®-M3 core running at 24 MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V, compatible with standard 3.3V logic.
- Q: How much Flash and RAM are available?
- A: It has 16KB Flash and 4KB RAM, suitable for simple control tasks.
- Q: What package is this MCU in?
- A: It comes in a 48-LQFP package, offering a good balance of I/O and size.
- Q: Does it include a temperature sensor?
- A: Yes, it has an internal temperature sensor, useful for monitoring applications.
