STMicroelectronics STM32F100RBH6B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.18 | $8.18 |
| 15+ | $5.37 | $80.55 |
| 25+ | $5.26 | $131.50 |
| 50+ | $4.96 | $248.00 |
| 100+ | $4.38 | $438.00 |
| N+ | $0.88 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 51 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TFBGA (5x5) |
| Package / Case | 64-TFBGA |
| ROHS |  |
The STM32F100RBH6B from STMicroelectronics is a 32-bit ARM Cortex-M3 microcontroller running at 24MHz. It features 128KB of flash and 8KB of SRAM, with a supply range of 2V to 3.6V. This device integrates DMA, PDR, POR, PVD, PWM, and a temperature sensor, making it a versatile choice for low-power consumer and industrial applications. The 64-TFBGA package offers a compact solution for space-limited designs.
- Low Power Consumption: 24MHz core and multiple low-power modes extend battery life.
- Rich Analog Features: Built-in temperature sensor and ADC simplify sensor interfacing.

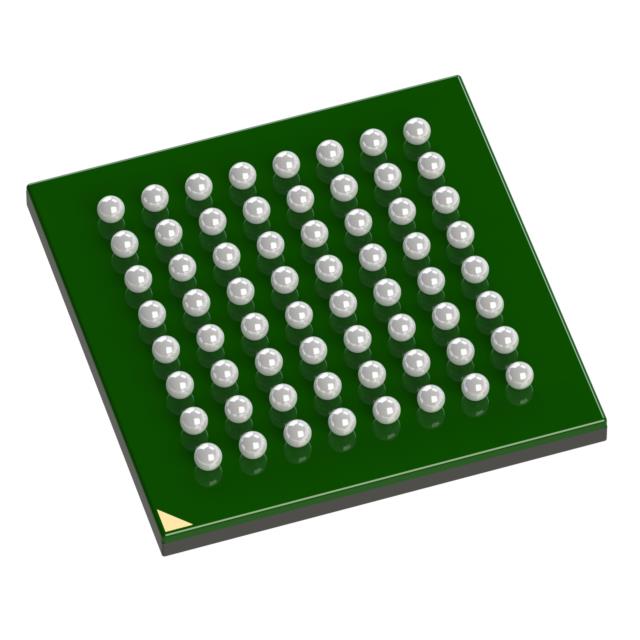

- Compact BGA Package: 64-TFBGA reduces board space while maintaining performance.
- Comprehensive Safety: PDR, POR, and PVD protect against power anomalies.
Battery-Powered Data Loggers
The 24MHz core and low-power modes allow extended operation in environmental monitoring devices.
Consumer Electronics Remote Controls
Its compact BGA package and DMA support enable complex IR/RF protocols in slim remote designs.
Medical Monitoring Wearables
With 128KB flash, it can store patient data and run real-time algorithms for heart rate or activity tracking.
Smart Home Thermostats
PWM outputs and temperature sensor interface make it ideal for precise temperature regulation.
Industrial Timers and Counters
The rich timer set and 8KB SRAM support multi-channel counting and timing in production line equipment.
Point-of-Sale Terminals
Its processing power and peripheral set handle keypad scanning, display control, and communication in POS devices.
- Q: What is the core speed of the STM32F100RBH6B?
- A: It runs at 24MHz on an ARM Cortex-M3 core, optimized for low-power and cost-sensitive applications.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V, suitable for battery-powered devices.
- Q: How much flash and RAM does it have?
- A: It provides 128KB of flash and 8KB of SRAM, enough for moderate firmware.
- Q: What package is available?
- A: It comes in a 64-TFBGA package, offering a small footprint with good thermal characteristics.
