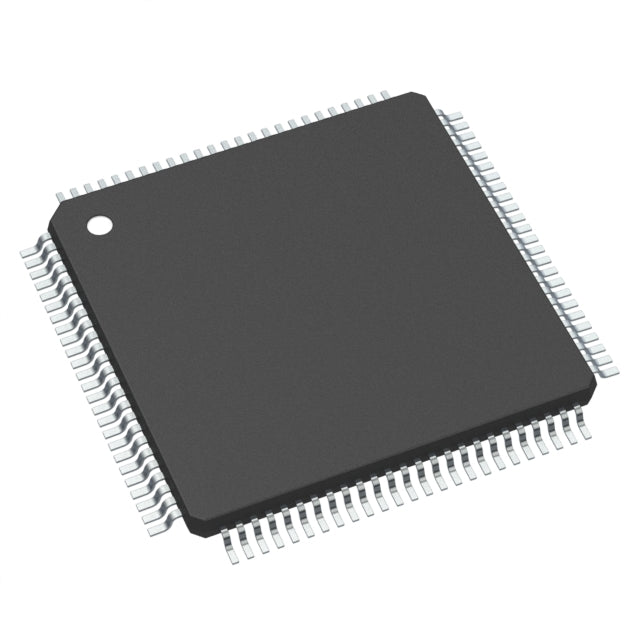

STMicroelectronics STM32F100VCT6BTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.30 | $10.30 |
| 15+ | $6.77 | $101.55 |
| 25+ | $6.62 | $165.50 |
| 50+ | $6.26 | $313.00 |
| 100+ | $5.52 | $552.00 |
| N+ | $1.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 80 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STM32F100VCT6B is an ARM Cortex-M3 based MCU from STMicroelectronics, operating at 24MHz with 256KB flash and 24KB SRAM. It supports a 2V to 3.6V supply range and includes DMA, PWM, PVD, POR, and a temperature sensor. Housed in a 100-LQFP package, it is designed for cost-sensitive industrial and consumer applications requiring efficient control and connectivity.
- ARM Cortex-M3 core: Industry-standard architecture with extensive toolchain support.
- Low voltage operation (2V-3.6V): Extends battery life in portable devices.
- Integrated temperature sensor: Eliminates external sensing components.
- DMA controller: Reduces CPU load for high-throughput data transfers.
- Wide operating temperature (-40°C to 85°C): Suitable for diverse environments.
Motor Control Drives
The 24MHz Cortex-M3 with PWM and DMA enables smooth field-oriented control of BLDC motors. The 2V-3.6V supply allows direct operation from Li-ion batteries.
Portable Medical Devices
Low power consumption and a temperature sensor make it suitable for wearable health monitors. The PVD and POR ensure safe shutdown during battery discharge.
Industrial Sensors
With 256KB flash, it can store calibration data and complex signal processing algorithms. The 100-pin package provides multiple ADC inputs for multi-channel sensing.
Building Security Panels
DMA and PWM support driving alarm indicators and reading keypads. The -40°C to 85°C range covers outdoor installation requirements.
Consumer Appliances
Cost-effective 24MHz processing handles user interfaces and sensor feedback in washing machines and microwaves. The WDT improves reliability in unattended operation.
Smart Grid Meters
The Cortex-M3 core efficiently runs metering algorithms, while the PVD monitors supply integrity. The 100-LQFP allows for multiple communication interface connections.
- Q: What is the core architecture?
- A: It uses the ARM Cortex-M3 core running at 24MHz, offering a balance of performance and low power.
- Q: What is the supply voltage range?
- A: The device operates from 2V to 3.6V, suitable for battery-powered and low-voltage applications.
- Q: How much flash and RAM are available?
- A: It provides 256KB of flash memory and 24KB of SRAM for code and data storage.
- Q: What package is this variant?
- A: This is a 100-pin LQFP package, ideal for dense PCB layouts.
- Q: Does it have analog peripherals?
- A: Yes, it includes a temperature sensor and multiple PWM channels, along with DMA for efficient data transfer.
