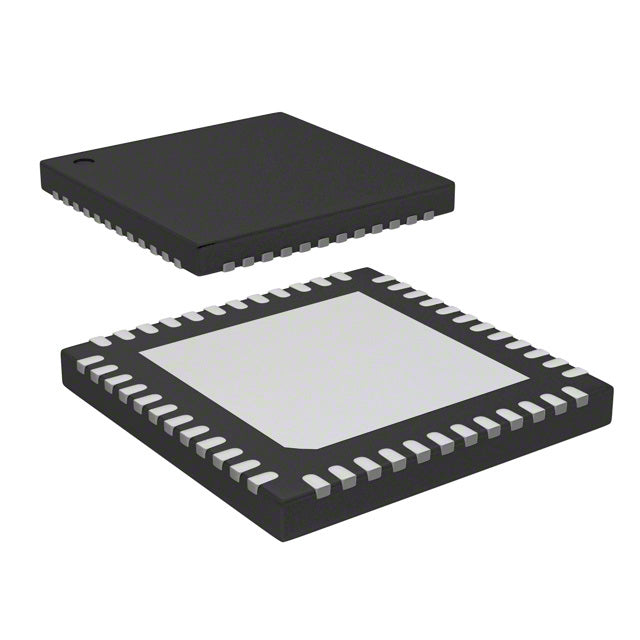

STMicroelectronics STM32F101C8U6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.11 | $5.11 |
| 15+ | $3.36 | $50.40 |
| 25+ | $3.29 | $82.25 |
| 50+ | $3.10 | $155.00 |
| 100+ | $2.74 | $274.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 37 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-UFQFPN (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
The STM32F101C8U6 from STMicroelectronics is a mainstream 32-bit microcontroller based on the ARM Cortex-M3 core. It operates at up to 36 MHz with a supply voltage range of 2V to 3.6V, offering a cost-effective solution for a wide range of applications. The device includes 64KB of flash memory and 10KB of SRAM, along with essential peripherals such as DMA, PWM, a temperature sensor, and multiple communication interfaces. Packaged in a 48-VFQFN exposed pad, it operates from -40°C to +85°C. Its integrated power-on reset, programmable voltage detector, and watchdog timer ensure reliable operation in demanding environments.
- Efficient Cortex-M3 core: 36MHz performance with low power consumption, balancing speed and energy efficiency for embedded applications.
- Cost-effective memory: 64KB flash and 10KB RAM provide sufficient resources for many applications without overspending on memory.
- Integrated temperature sensor: Enables on-chip temperature monitoring, reducing external component count and simplifying thermal management.
- DMA controller: Offloads data transfer tasks from the CPU, improving system throughput and responsiveness.
- Robust power management: PDR, POR, PVD, and WDT ensure stable operation and early warning of voltage issues, enhancing system reliability.
Industrial Control Systems
The 36MHz Cortex-M3 core and 64KB flash enable efficient execution of control logic for PLCs and motor drives, with DMA offloading data transfer tasks.
Building Automation
With a wide voltage range and robust reset features, it can manage HVAC controllers and lighting systems, ensuring reliable operation in commercial buildings.
Consumer Electronics
Ideal for home appliances like washing machines and microwaves, providing PWM for motor control and temperature sensing for safety.
Medical Devices
The integrated temperature sensor and low power consumption make it suitable for patient monitoring equipment, such as infusion pumps and vital sign monitors.
Point-of-Sale Terminals
With 10KB RAM, it can handle transaction processing and display interfaces, while DMA ensures smooth communication with peripherals.
Automotive Aftermarket
Operating from 2V to 3.6V, it can be used in car alarm systems and dashboard displays, with PVD providing early voltage drop warnings.
- Q: What is the core processor of the STM32F101C8U6?
- A: It uses an ARM Cortex-M3 core running at up to 36 MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It provides 64KB flash and 10KB RAM.
- Q: What package is available?
- A: It comes in a 48-VFQFN exposed pad package.
- Q: What are the key features?
- A: It includes DMA, PWM, temperature sensor, and multiple reset/watchdog features.
