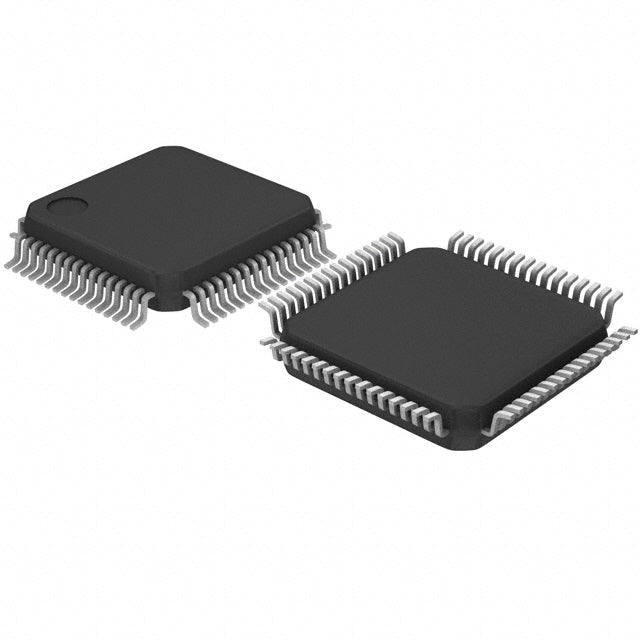

STMicroelectronics STM32F101R8T6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.08 | $8.08 |
| 15+ | $5.31 | $79.65 |
| 25+ | $5.19 | $129.75 |
| 50+ | $4.90 | $245.00 |
| 100+ | $4.33 | $433.00 |
| N+ | $0.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 51 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32F101R8T6TR from STMicroelectronics is a 32-bit microcontroller based on the ARM Cortex-M3 core, operating at up to 36MHz. It offers 64KB of flash memory and 10KB of SRAM, with a supply voltage range of 2V to 3.6V. The device includes a rich set of peripherals such as DMA, PWM, watchdog, and an internal temperature sensor, all in a 64-LQFP package. Its balanced performance and memory make it a versatile choice for a wide range of embedded applications, from industrial to consumer.
- High-performance ARM core: The Cortex-M3 provides excellent processing power and low power consumption.
- Large SRAM: 10KB RAM supports complex real-time applications and data buffering.
- Comprehensive protection: POR, PDR, and PVD ensure stable operation under voltage fluctuations.
- Rich peripheral set: DMA, PWM, and temperature sensor reduce external component count.
- Wide operating range: 2V-3.6V and -40°C to 85°C suit industrial environments.
Industrial Control Systems
The Cortex-M3 core at 36MHz provides deterministic interrupt handling, ideal for PLCs and motor controllers, with 10KB RAM for data buffers.
Building Automation
With multiple timers and PWM, it can control HVAC actuators and lighting, while the PVD monitors supply voltage for reliable operation.
Consumer Appliances
From washing machines to microwaves, the 64KB flash stores complex user interfaces and control algorithms, and the temperature sensor aids in safety monitoring.
Medical Monitoring Devices
The low voltage operation and DMA support enable portable patient monitors, with the Cortex-M3's efficient code density reducing memory requirements.
Point-of-Sale Terminals
With UART, SPI, and I2C interfaces, it can connect to card readers and displays, while the 10KB RAM handles transaction data.
Smart Sensors
The integrated temperature sensor and ADC allow for environmental sensing, with the Cortex-M3's DSP instructions for signal filtering.
- Q: What core does the STM32F101R8T6TR use?
- A: It uses the ARM Cortex-M3 32-bit RISC core, running at up to 36MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V, with integrated POR, PDR, and PVD.
- Q: How much flash and RAM are available?
- A: It has 64KB of flash and 10KB of SRAM.
- Q: What package is this?
- A: It comes in a 64-LQFP package, suitable for many applications.
- Q: Does it have a temperature sensor?
- A: Yes, it includes an internal temperature sensor and PWM timers.
