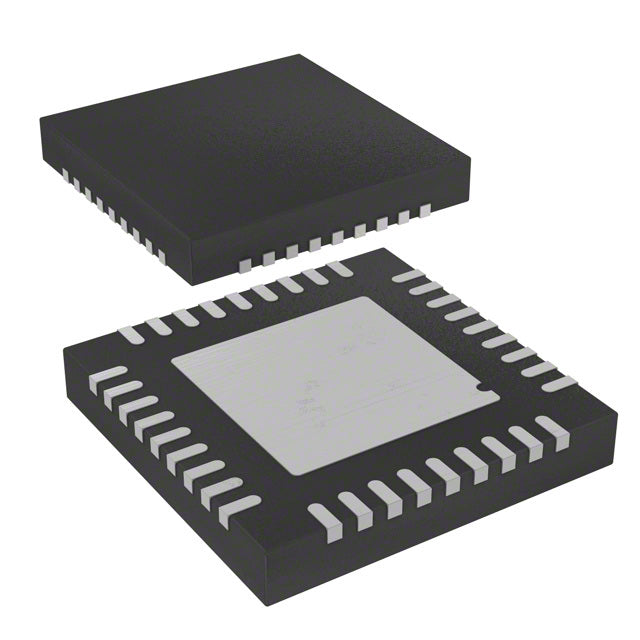

STMicroelectronics STM32F101TBU6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.00 | $9.00 |
| 15+ | $8.28 | $124.20 |
| 25+ | $8.10 | $202.50 |
| 50+ | $7.65 | $382.50 |
| 100+ | $6.75 | $675.00 |
| N+ | $1.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 26 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Package / Case | 36-VFQFN Exposed Pad |
| ROHS |  |
The STM32F101TBU6 from STMicroelectronics is a 32-bit microcontroller featuring the ARM Cortex-M3 core at 36MHz. It provides 128KB of flash memory and 16KB of SRAM, operating from 2V to 3.6V. This MCU integrates DMA, PWM, and protection features such as PDR, POR, PVD, and a temperature sensor. Packaged in a 36-VFQFN with exposed pad, it operates from -40°C to 85°C, making it ideal for space-constrained industrial and consumer applications.
- Space-saving design: 36-VFQFN package is ideal for compact PCBs.
- Reliable operation: PDR, POR, and PVD protect against power issues.
- Ample storage: 128KB flash and 16KB RAM support complex applications.
- Versatile peripherals: DMA and PWM enhance real-time control.
Compact Industrial Controllers
The 36-VFQFN package saves space while the 36MHz core handles real-time control in small PLCs.
Portable Test Equipment
Low power consumption and wide temperature range support handheld multimeters and calibrators.
Smart Home Devices
DMA and PWM enable efficient control of smart thermostats and lighting systems.
Medical Sensors
The integrated temperature sensor and WDT provide reliable operation in patient monitoring devices.
Automotive Accessories
PDR and PVD features ensure stable performance in car alarm systems and power windows.
Environmental Monitoring
With 128KB flash, it can store extensive data logs for weather stations and air quality monitors.
- Q: What core is used in the STM32F101TBU6?
- A: It is based on the ARM Cortex-M3 core.
- Q: What is the maximum clock speed?
- A: It operates at up to 36MHz.
- Q: How much flash and RAM are available?
- A: It has 128KB of flash and 16KB of SRAM.
- Q: What is the supply voltage range?
- A: It supports 2V to 3.6V.
- Q: What package is it offered in?
- A: It comes in a 36-VFQFN exposed pad package.
