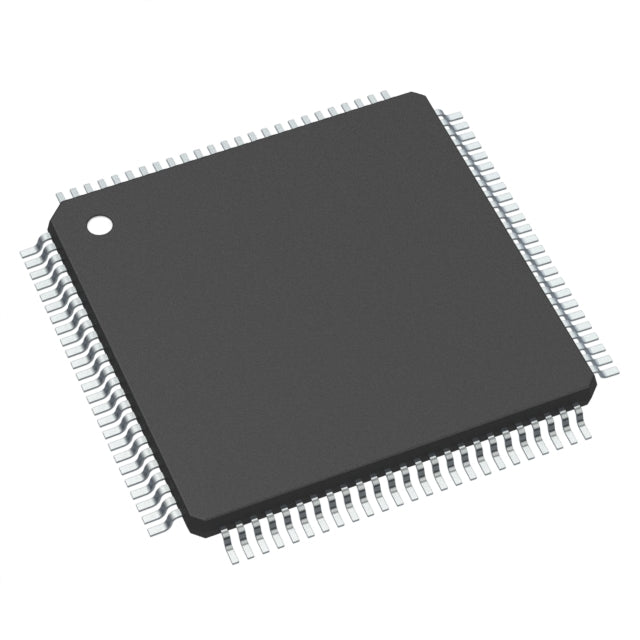

STMicroelectronics STM32F101VDT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.53 | $12.53 |
| 15+ | $8.23 | $123.45 |
| 25+ | $8.06 | $201.50 |
| 50+ | $7.61 | $380.50 |
| 100+ | $6.71 | $671.00 |
| N+ | $1.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 80 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STM32F101VDT6 is a 32-bit MCU from STMicroelectronics, built on the ARM Cortex-M3 core at 36MHz. It offers 384KB of flash and 48KB of SRAM, operating from 2V to 3.6V. Housed in a 100-LQFP package, it integrates DMA, PWM, PVD, and a temperature sensor, making it a robust choice for industrial and consumer applications.
- High memory density: 384KB flash and 48KB SRAM support complex applications without external memory.
- Efficient DMA: Reduces CPU intervention for peripheral data transfers, improving real-time performance.
- Integrated safety features: PDR, POR, and PVD enhance system reliability in unstable power environments.
- Rich peripheral set: Includes PWM, temperature sensor, and WDT for versatile application design.
Industrial Control Systems
The 36MHz Cortex-M3 core with 384KB flash enables complex control algorithms for PLCs and motor drives, while the 100-pin package offers ample I/O.
Building Automation
With PVD and POR, this MCU ensures reliable operation in HVAC and access control panels, handling multiple sensor inputs and actuator outputs.
Point-of-Sale Terminals
The large flash memory supports GUI libraries and transaction logging, while the 48KB SRAM handles real-time data processing.
Medical Monitoring
Its wide voltage range and temperature sensor make it suitable for patient monitors, providing accurate environmental compensation.
Networking Equipment
DMA channels offload data transfer in Ethernet and serial communication modules, improving throughput in routers and switches.
Test and Measurement
The PWM and timer features allow precise signal generation for oscilloscopes and data acquisition units.
- Q: What core does the STM32F101VDT6 use?
- A: It is based on the ARM Cortex-M3 32-bit RISC core running at 36MHz.
- Q: What is the memory configuration?
- A: It provides 384KB of flash memory and 48KB of SRAM.
- Q: What is the operating voltage?
- A: The supply voltage ranges from 2V to 3.6V.
- Q: What package is this device available in?
- A: It comes in a 100-pin LQFP package.
- Q: Does it include a temperature sensor?
- A: Yes, it has an integrated temperature sensor along with DMA and PWM.
