HQICKEY STM32F103C8T6 / C6T6 Development Board – Blue Pill Core Board Starter Kit

STM32F103C8T6 / C6T6 Development Board

The STM32F103C8T6 is a mainstream Arm® Cortex®-M3 microcontroller from STMicroelectronics, running at up to 72 MHz with 64 KB Flash and 20 KB SRAM. Widely used in motor control, industrial automation, and consumer electronics — this Blue Pill-style development board is the ideal starting point for embedded development.

Key Specifications

• Core: Arm® 32-bit Cortex®-M3, up to 72 MHz
• Memory: 64 KB Flash / 20 KB SRAM (C8T6); 32 KB Flash / 10 KB SRAM (C6T6)
• Peripherals: 37 GPIOs, 2×12-bit ADC, USART, SPI, I²C, CAN, USB
• Package: LQFP48
• Supply Voltage: 2.0–3.6 V

Board Features

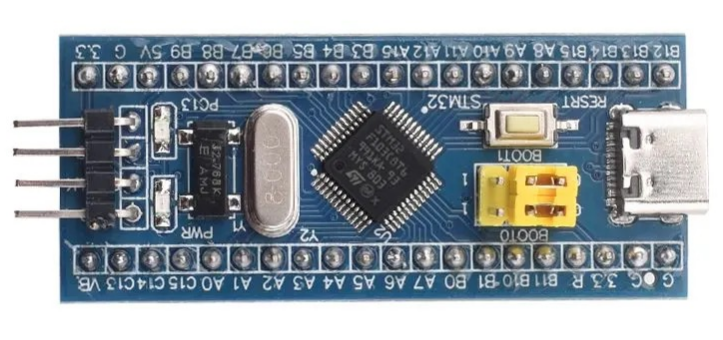

• Onboard USB connector (Micro / TYPE-C options available)
• Reset button and PC13 LED indicator

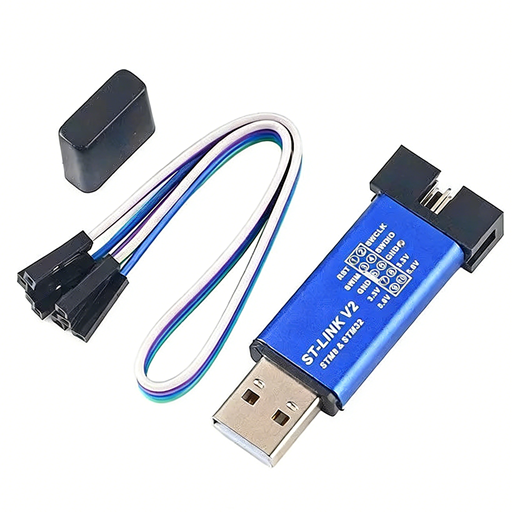

• SWD debug interface compatible with ST-Link V2

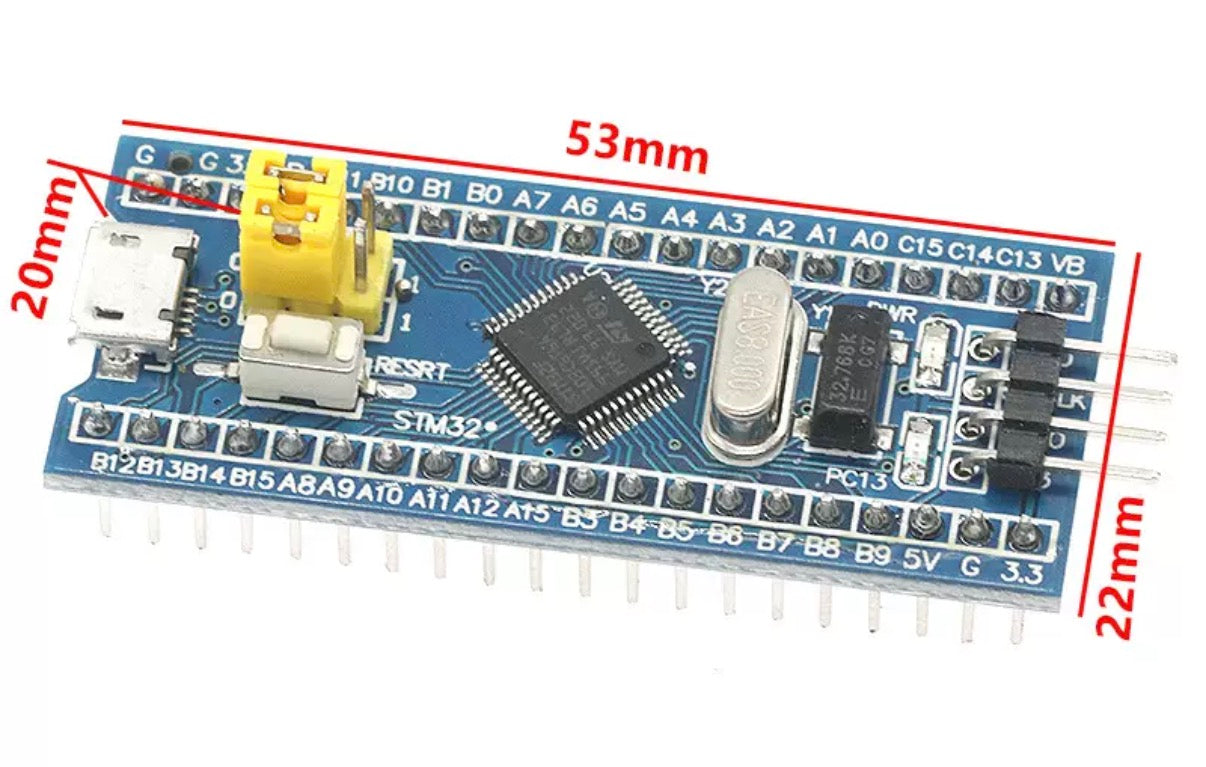

• Breadboard-friendly 2.54 mm pin pitch

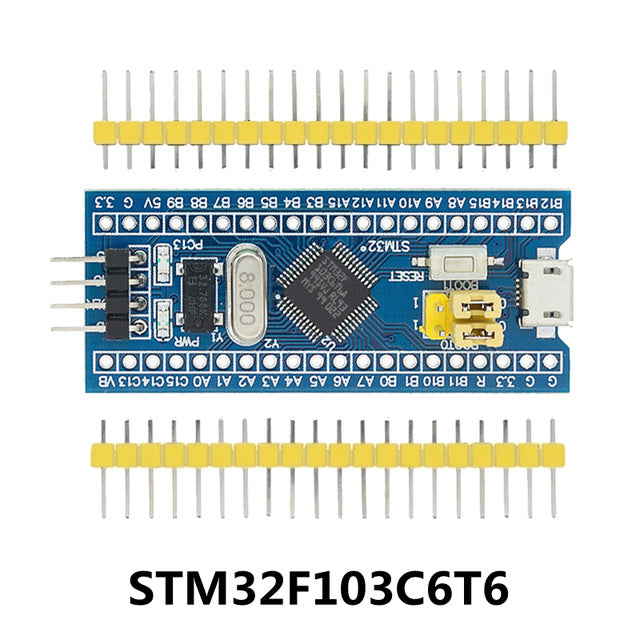

• Optional: pins pre-soldered or unsoldered

Getting Started

Program and debug using STM32CubeIDE + STM32CubeMX (free official tools). Connect via ST-Link V2 through the SWD interface (SWDIO / SWCLK / GND / 3.3V). Configure clocks, GPIO, and peripherals graphically — then generate HAL code in minutes.

Common Issues & Tips

• Add 100 nF + 10 µF decoupling capacitors on each VDD pin for stable operation
• Verify SWDIO / SWCLK / GND / NRST wiring if ST-Link fails to connect
• Check PA11 / PA12 if USB is not recognized

📖 Read the full STM32F103C8T6 User Guide — covering hardware design, pinout, programming basics, and troubleshooting based on official ST documentation (DS5319, AN2586).

Note: Genuine STMicroelectronics chips. Always verify with STM32CubeProgrammer for production use.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
