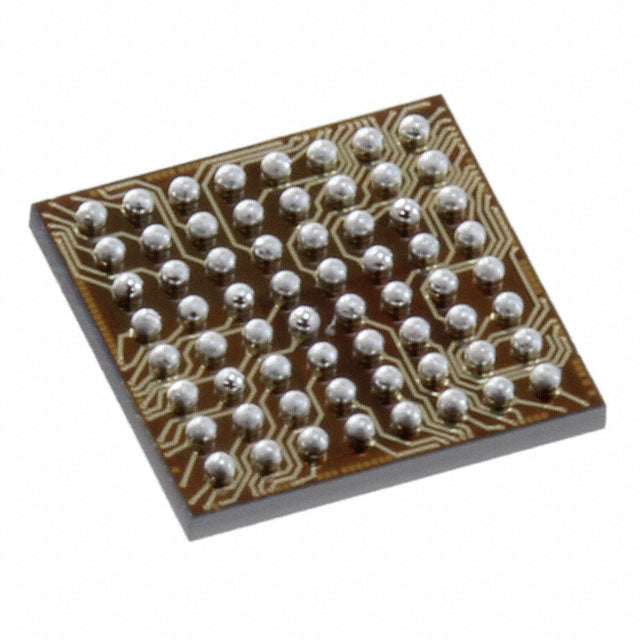

STMicroelectronics STM32F103RCY6CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 51 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-WLCSP (4.4x4.4) |
| Package / Case | 64-UFBGA, WLCSP |
| ROHS |  |
The STM32F103RCY6CTR is a 32-bit ARM Cortex-M3 microcontroller from STMicroelectronics. It runs at 72MHz and features 256KB of Flash and 48KB of SRAM. This device is packed with peripherals including Motor Control PWM timers, DMA, and multiple communication interfaces. Its 64-pin UFBGA/WLCSP package is perfect for compact, high-performance embedded designs.
- ARM Cortex-M3 Core: Industry-standard architecture with excellent toolchain support.
- Motor Control Timers: Dedicated hardware for generating complex PWM waveforms for BLDC and PMSM motors.
- Rich Peripheral Set: Includes DMA, ADC, DAC, and multiple communication interfaces (USART, SPI, I2C).
- Compact WLCSP Package: Ideal for space-constrained applications without sacrificing performance.
- Wide Voltage Range (2V-3.6V): Flexible power supply options for various system designs.
Motor Control (BLDC/PMSM)
The dedicated Motor Control PWM timers and 72MHz Cortex-M3 core enable field-oriented control of brushless motors.
Industrial PLCs
With 256KB Flash and multiple communication interfaces (I2C, SPI, USART), it can handle complex ladder logic and fieldbus protocols.
Medical Monitoring Devices
The low-power modes and 2V-3.6V supply range make it suitable for portable patient monitors.
Consumer Robotics
DMA and rich timer resources allow simultaneous control of servos, sensors, and user interfaces.
Drone Flight Controllers
The compact WLCSP package and high-speed PWM outputs are ideal for space-constrained flight control boards.
Smart Home Gateways
Multiple UARTs and SPI interfaces connect to Wi-Fi, Zigbee, and sensor modules for home automation hubs.
- Q: What is the core of the STM32F103RCY6CTR?
- A: It uses the ARM Cortex-M3 core.
- Q: What is the maximum operating frequency?
- A: It operates at up to 72MHz.
- Q: How much Flash and RAM does it have?
- A: It has 256KB Flash and 48KB SRAM.
- Q: What package is this available in?
- A: It comes in a 64-pin UFBGA/WLCSP package.
- Q: Does it support motor control?
- A: Yes, it includes Motor Control PWM timers.
