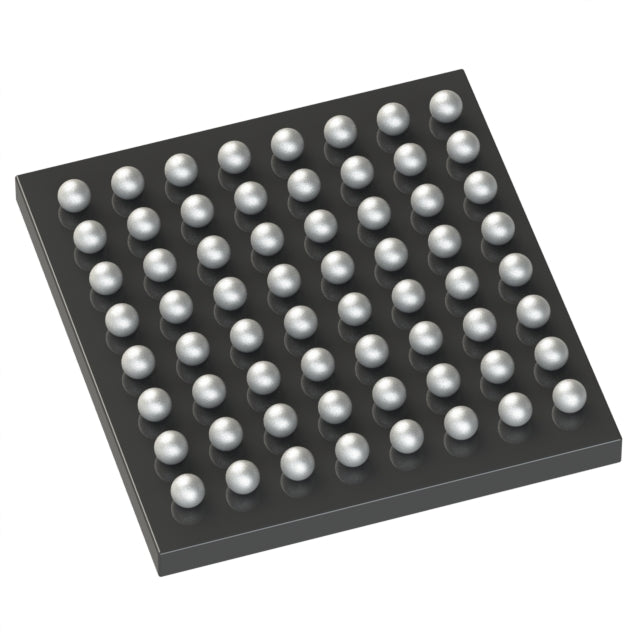

STMicroelectronics STM32F103RDY6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.81 | $12.81 |
| 15+ | $8.42 | $126.30 |
| 25+ | $8.24 | $206.00 |
| 50+ | $7.78 | $389.00 |
| 100+ | $6.86 | $686.00 |
| N+ | $1.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 51 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-WLCSP (4.47×4.4) |
| Package / Case | 64-UFBGA, WLCSP |
| ROHS |  |
The STM32F103RDY6TR from STMicroelectronics is a high-performance 32-bit microcontroller built on the ARM Cortex-M3 core. Operating at up to 72 MHz, it delivers 384KB of flash memory and 64KB of SRAM, making it suitable for complex control algorithms. With a wide 2V to 3.6V supply range and a compact 64-UFBGA package, it is designed for space-constrained and power-sensitive applications. Its rich feature set includes DMA, motor control PWM, and multiple reset and detection functions, ensuring robust operation in industrial and consumer environments.
- High processing power: 72MHz Cortex-M3 core delivers efficient execution for real-time control tasks.
- Large memory capacity: 384KB flash and 64KB SRAM support complex firmware and data buffering.
- Advanced motor control: Dedicated PWM timers enable precise control of AC and DC motors.
- Compact packaging: WLCSP package minimizes board space for miniaturized designs.
- Robust reliability: Includes PDR, POR, PVD, and WDT for safe operation in harsh environments.
Motor Control for Industrial Drives
With dedicated Motor Control PWM timers and a 72MHz Cortex-M3 core, this MCU provides precise waveform generation for BLDC and PMSM motor drives in industrial automation.
Portable Medical Devices
The low 2V minimum supply voltage and multiple power-saving modes enable battery-powered medical monitoring devices that require reliable operation and long battery life.
Smart Sensors and IoT Nodes
Its DMA controller and rich analog peripherals allow efficient data acquisition from multiple sensors, while the WLCSP package saves PCB space for compact IoT designs.
Power Conversion and Inverters
The combination of high-speed ADC and advanced PWM timers supports digital power control in switch-mode power supplies and solar inverters.
Automotive Body Electronics
Operating from -40°C to 85°C with robust reset circuitry (PDR/POR/PVD), it suits automotive body control modules like lighting and window lift systems.
Consumer Appliances
With integrated temperature sensor and WDT, it enables reliable control for washing machines, refrigerators, and other home appliances requiring cost-effective processing.
- Q: What is the maximum operating frequency of the STM32F103RDY6TR?
- A: The STM32F103RDY6TR operates at up to 72 MHz with an ARM Cortex-M3 core.
- Q: What is the supply voltage range?
- A: It supports a supply voltage range of 2V to 3.6V.
- Q: How much flash memory does this MCU include?
- A: It includes 384KB of program flash memory and 64KB of SRAM.
- Q: What package is available?
- A: It comes in a 64-UFBGA (WLCSP) package.
- Q: Does it support motor control applications?
- A: Yes, it features Motor Control PWM and multiple timers suitable for motor control.
