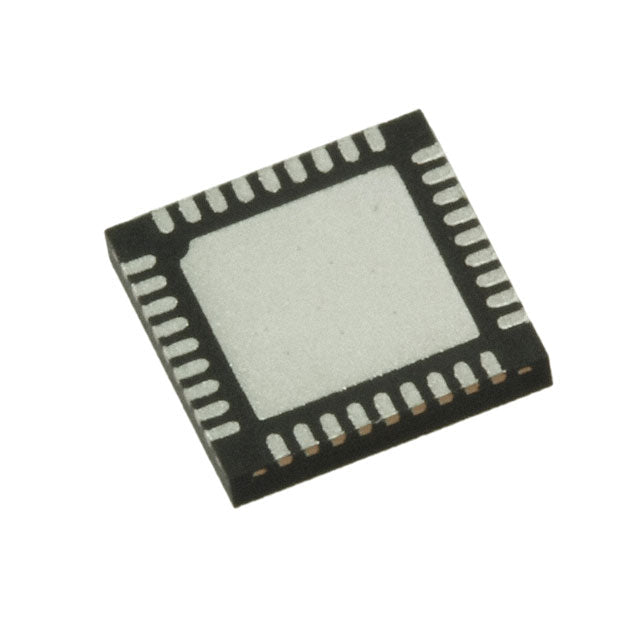

STMicroelectronics STM32F103T4U6A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.81 | $5.81 |
| 15+ | $3.82 | $57.30 |
| 25+ | $3.74 | $93.50 |
| 50+ | $3.53 | $176.50 |
| 100+ | $3.11 | $311.00 |
| N+ | $0.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 26 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Package / Case | 36-VFQFN Exposed Pad |
| ROHS |  |
The STM32F103T4U6A from STMicroelectronics is a 32-bit MCU based on the ARM Cortex-M3 core, running at 72MHz. It offers 16KB flash and 6KB RAM in a compact 36-VFQFN package. With a 2V to 3.6V supply range, it is suited for battery-powered and low-voltage applications. Integrated features include DMA, motor control PWM, PVD, POR, and a temperature sensor.
- 72MHz Cortex-M3: Higher performance than M0 cores for complex control algorithms.
- Motor Control PWM: Hardware dead-time generation reduces software overhead and improves safety.
- Wide voltage range (2V-3.6V): Compatible with 2-cell alkaline or Li-ion battery packs.
- Compact 36-VFQFN: Saves PCB space for space-constrained designs.
Brushless DC Motor Driver
The dedicated Motor Control PWM timers with dead-time insertion make it ideal for 3-phase BLDC control in drones or pumps.
Portable Instrumentation
Low 2V operation and multiple power-saving modes extend battery life in handheld multimeters.
Industrial I/O Module
With 72MHz processing and DMA, it can handle fast digital inputs and update analog outputs in PLC modules.
Consumer Appliance Controller
Its PWM and temperature sensor features support closed-loop control in washing machines or refrigerators.
Sensor Fusion Hub
The Cortex-M3 core with DMA efficiently reads multiple I2C/SPI sensors and fuses data for robotics.
Power Supply Supervisor
PVD (Programmable Voltage Detector) monitors supply rails and triggers shutdown sequences in redundant PSUs.
- Q: What core does the STM32F103T4U6A use?
- A: It uses an ARM Cortex-M3 core at 72MHz.
- Q: What is the flash and RAM size?
- A: It has 16KB flash and 6KB RAM.
- Q: What is the operating voltage?
- A: It operates from 2V to 3.6V.
- Q: Does it support motor control?
- A: Yes, it includes Motor Control PWM and complementary outputs.
- Q: What package is it available in?
- A: It comes in a 36-VFQFN package with exposed pad.
