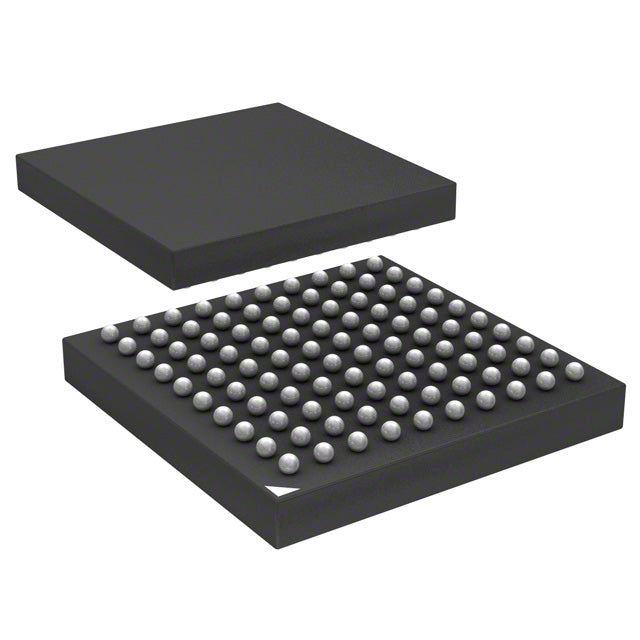

STMicroelectronics STM32F103VEH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.80 | $12.80 |
| 15+ | $8.41 | $126.15 |
| 25+ | $8.23 | $205.75 |
| 50+ | $7.77 | $388.50 |
| 100+ | $6.86 | $686.00 |
| N+ | $1.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 80 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 100-LFBGA |
| ROHS |  |
The STM32F103VEH6 is a high-performance ARM Cortex-M3 microcontroller from STMicroelectronics, operating at up to 72 MHz. It provides 512KB of flash memory and 64KB of SRAM, ensuring ample space for complex applications. With a wide supply voltage range of 2V to 3.6V and a rich set of peripherals including DMA, motor control PWM, and multiple timers, this MCU is designed for demanding embedded control tasks. Its 100-LFBGA package offers a compact footprint for space-constrained designs.
- High Memory Capacity: 512KB flash and 64KB RAM enable complex firmware and data buffering, reducing the need for external memory.
- Advanced Motor Control: Dedicated PWM timers and dead-time generation simplify the design of efficient motor drives.
- Wide Voltage Range: Operates from 2V to 3.6V, supporting both 3.3V and 2V logic systems and battery-powered applications.
- Rich Peripheral Set: Includes DMA, multiple ADCs, and communication interfaces (USART, SPI, I2C) for versatile connectivity.
- Reliable Operation: Integrated POR, PDR, and watchdog timers ensure stable operation in harsh environments.
Industrial Motor Control
With its motor control PWM and 72MHz Cortex-M3 core, the STM32F103VEH6 is ideal for driving BLDC and PMSM motors in industrial drives, offering precise timing and smooth operation.
Smart Sensors and IoT Gateways
The rich set of analog and digital peripherals, combined with low power modes, makes it suitable for sensor fusion nodes and IoT gateways that require local processing and connectivity.
Medical Monitoring Devices
Its reliable operation over -40°C to 85°C and integrated watchdog timers ensure dependable performance in patient monitoring systems, where accuracy and uptime are critical.
Building Automation Controllers
With DMA and multiple communication interfaces, this MCU can manage HVAC systems, lighting controls, and access panels, handling multiple protocols simultaneously.
Portable Instrumentation
The 2V minimum supply voltage allows battery-powered operation, while the 512KB flash supports complex algorithms for handheld test and measurement equipment.
Automotive Aftermarket Modules
Although not fully automotive qualified, its robust feature set and temperature range make it suitable for non-critical automotive add-on modules like telematics or infotainment interfaces.
- Q: What is the maximum clock speed of the STM32F103VEH6?
- A: The STM32F103VEH6 operates at up to 72 MHz.
- Q: What is the supply voltage range?
- A: It supports 2V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 512KB flash and 64KB RAM.
- Q: What package is available?
- A: It comes in a 100-LFBGA package.
- Q: Does it include motor control PWM?
- A: Yes, it features motor control PWM and multiple other peripherals.
