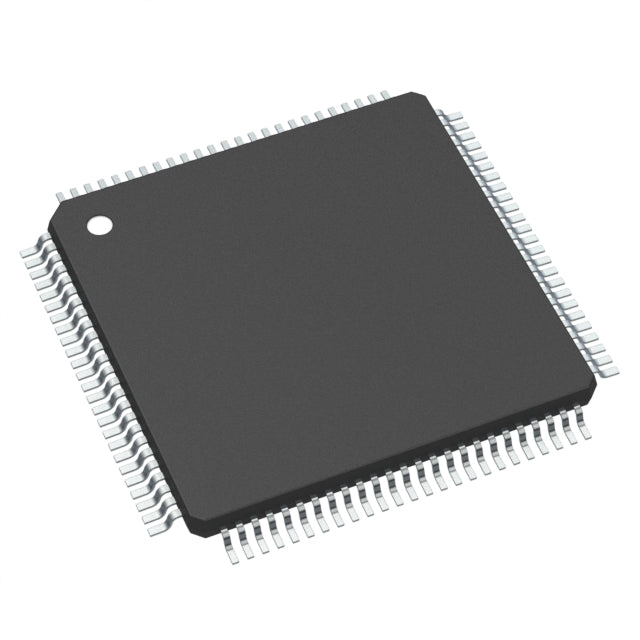

STMicroelectronics STM32F205VGT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.02 | $20.02 |
| 15+ | $13.16 | $197.40 |
| 25+ | $12.87 | $321.75 |
| 50+ | $12.16 | $608.00 |
| 100+ | $10.73 | $1,073.00 |
| N+ | $2.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F2 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 132K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STM32F205VGT6 from STMicroelectronics is a high-performance 32-bit microcontroller based on the ARM Cortex-M3 core, operating at up to 120MHz. It offers 1MB of Flash memory and 132K x 8 RAM, packaged in a 100-LQFP. With a supply voltage range of 1.8V to 3.6V and an operating temperature range of -40°C to 85°C, it is versatile for various applications. Integrated features include Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, and WDT, making it suitable for HMI, audio, and medical applications.
- Rich Peripheral Set: Includes LCD interface, I2S, and multiple communication protocols, reducing external component count.
- High Memory Capacity: 1MB Flash and 132K RAM support complex applications and data buffering.
- Efficient DMA: DMA controllers enable high-speed data transfer without CPU overhead.
- Wide Application Range: Suitable for consumer, industrial, and medical devices due to its balanced feature set.
Human-Machine Interface (HMI) Panels
The integrated LCD interface and 120MHz Cortex-M3 core enable smooth graphics rendering on TFT displays in industrial control panels.
Audio Processing
With I2S support and 1MB Flash, it can handle audio codec algorithms for professional audio mixers or musical instruments.
Medical Monitoring Devices
The 132K RAM supports real-time processing of ECG or EEG signals, while the low-power modes extend battery life in portable monitors.
Networking and Communication
Its DMA and multiple communication interfaces (UART, SPI, I2C) make it suitable for protocol converters and industrial Ethernet gateways.
Consumer Electronics
The 100-pin package and rich peripherals support smart home controllers, wearable devices, and gaming peripherals.
Test and Measurement Equipment
High-speed ADC and PWM allow precise signal generation and measurement in oscilloscopes and data loggers.
- Q: What core does the STM32F205VGT6 use?
- A: It is based on the ARM Cortex-M3 core, running at up to 120MHz.
- Q: How much Flash and RAM does it have?
- A: It features 1MB of Flash memory and 132K x 8 bytes of RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD parallel interface, making it suitable for display applications.
- Q: What package is available?
- A: It comes in a 100-LQFP package.
