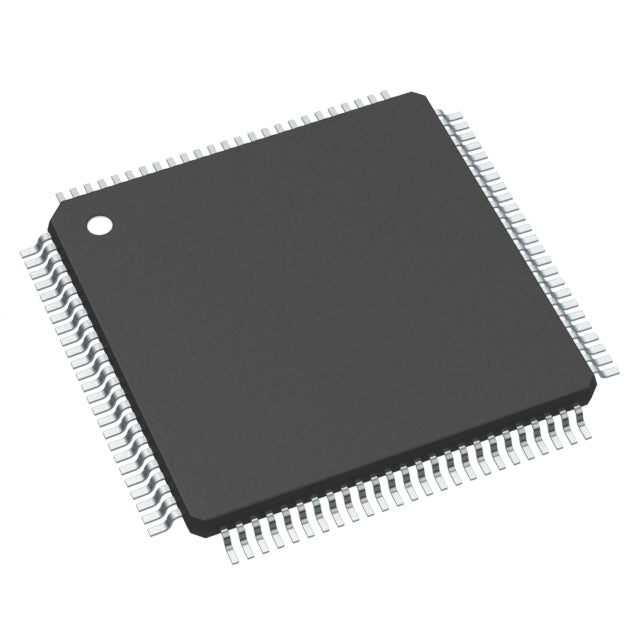

STMicroelectronics STM32F205VGT7TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $37.96 | $37.96 |
| 15+ | $8.73 | $130.95 |
| 25+ | $8.54 | $213.50 |
| 50+ | $8.07 | $403.50 |
| 100+ | $7.12 | $712.00 |
| N+ | $1.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F2 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 132K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STM32F205VGT7TR from STMicroelectronics is a high-performance 32-bit microcontroller built on the ARM Cortex-M3 core. Operating at up to 120 MHz, it delivers exceptional processing power for advanced embedded applications. With 1 MB of flash memory and 132 KB of SRAM, it provides ample storage for complex code and data. The device supports a wide supply voltage range of 1.8V to 3.6V and includes a comprehensive set of peripherals such as DMA, I2S, LCD interface, PWM, and watchdog timers. Housed in a 100-pin LQFP package, it operates reliably across -40°C to 105°C, making it ideal for industrial, medical, and consumer applications.
- High Performance: 120 MHz Cortex-M3 core delivers fast processing for real-time applications.
- Large Memory: 1 MB flash and 132 KB RAM support complex firmware and data buffering.
- Rich Peripherals: Integrated LCD, I2S, and DMA reduce external component count and simplify design.
- Wide Voltage Range: Operates from 1.8V to 3.6V, enabling flexible power supply design.
- Extended Temperature: -40°C to 105°C rating ensures reliability in harsh environments.
Industrial Control Systems
With a 120 MHz ARM Cortex-M3 core and 1 MB flash, the STM32F205VGT7TR handles complex control algorithms and real-time tasks in PLCs and industrial automation.
Medical Monitoring Devices
The wide 1.8V-3.6V supply range and low-power modes enable portable medical devices, while the DMA controller ensures efficient data transfer from sensors.
Consumer Electronics HMI
The integrated LCD interface and rich PWM channels support graphical user interfaces and motor control in smart home appliances.
IoT Gateway Nodes
Its 132 KB RAM and multiple communication interfaces (I2S, DMA) allow seamless handling of sensor data and network protocols in IoT edge devices.
Motor Control Drives
Advanced PWM timers and fast ADC conversion enable precise field-oriented control (FOC) for brushless DC motors in robotics and drones.
Audio Processing
The I2S peripheral and high-speed core make it suitable for audio codec interfacing and real-time audio effects in professional equipment.
- Q: What is the maximum operating frequency of the STM32F205VGT7TR?
- A: The STM32F205VGT7TR operates at up to 120 MHz, providing high-performance processing for demanding applications.
- Q: What is the program memory size?
- A: It features 1 MB of flash memory, ideal for complex firmware and large application code.
- Q: What is the operating temperature range?
- A: The device is rated for -40°C to 105°C, suitable for industrial environments.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD parallel interface, making it suitable for display applications.
- Q: What is the package type?
- A: It comes in a 100-pin LQFP package, offering a compact footprint for PCB design.
