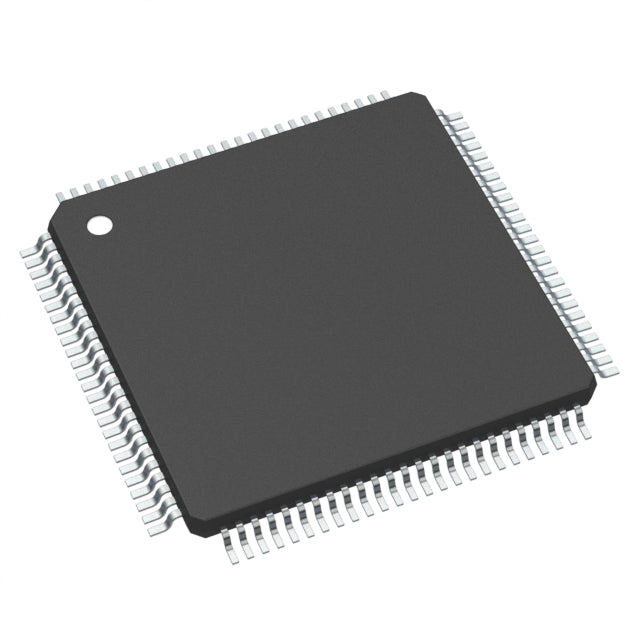

STMicroelectronics STM32F207VGT6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.29 | $21.29 |
| 15+ | $13.99 | $209.85 |
| 25+ | $13.69 | $342.25 |
| 50+ | $12.93 | $646.50 |
| 100+ | $11.41 | $1,141.00 |
| N+ | $2.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F2 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, Ethernet, I2C, IrDA, LINbus, Memory Card, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 132K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STM32F207VGT6TR is a high-performance ARM Cortex-M3 microcontroller from STMicroelectronics, operating at 120 MHz. It offers 1MB of flash memory and 132KB of SRAM, ensuring ample space for complex applications. With a supply voltage range of 1.8V to 3.6V, it supports battery-powered designs. The 100-pin LQFP package provides a compact footprint for space-constrained PCBs. Its rich peripheral set includes DMA, I2S, LCD interface, PWM timers, and watchdog timers, making it a versatile choice for industrial, consumer, and medical applications.
- High Memory Capacity: 1MB flash and 132KB RAM enable complex firmware and data buffering without external memory.
- Efficient Core: The 120MHz Cortex-M3 delivers excellent performance-per-watt for real-time control.
- Integrated LCD Controller: Reduces BOM cost by eliminating external display driver ICs.
- Wide Voltage Range: 1.8V to 3.6V allows flexible power supply design, including single-cell battery operation.
- Rich Peripherals: DMA, I2S, PWM, and WDT simplify system design and improve reliability.
Industrial Control Systems
With a 120MHz Cortex-M3 core, 1MB flash, and robust PWM timers, the STM32F207VGT6TR handles complex motor control and PLC logic with ease.
Smart Meters and Energy Monitoring
Its low-power modes and 12-bit ADCs enable accurate energy measurement while maintaining low power consumption for battery-backed metering.
Medical Monitoring Devices
The wide voltage range and DMA controllers support continuous data acquisition from sensors, ideal for portable patient monitors.
Building Automation Gateways
With I2S and multiple UARTs, it can bridge audio and sensor data in smart building systems, supporting Ethernet connectivity via external PHY.
Consumer Electronics HMI
The integrated LCD controller and rich GPIOs allow direct driving of small TFT displays for user interfaces in appliances.
Automotive Aftermarket
Operating from -40°C to 85°C, it suits in-vehicle telematics and infotainment control units requiring reliable performance.
- Q: What is the maximum operating frequency of the STM32F207VGT6TR?
- A: The STM32F207VGT6TR operates at up to 120 MHz.
- Q: What is the supply voltage range?
- A: It supports 1.8V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 1MB flash and 132KB RAM.
- Q: What package is available?
- A: It comes in a 100-pin LQFP package.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD parallel interface.
