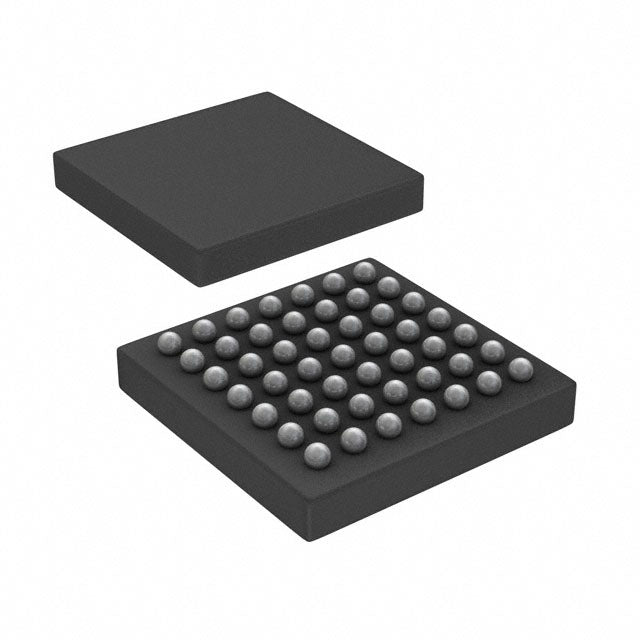

STMicroelectronics STM32F411CCY6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.13 | $8.13 |
| 15+ | $5.35 | $80.25 |
| 25+ | $5.23 | $130.75 |
| 50+ | $4.94 | $247.00 |
| 100+ | $4.36 | $436.00 |
| N+ | $0.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | I2C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 36 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-WLCSP |
| Package / Case | 49-UFBGA, WLCSP |
| ROHS |  |
The STM32F411CC from STMicroelectronics is a high-performance 32-bit MCU based on the ARM Cortex-M4 core with FPU, running at 100MHz. It features 256KB flash and 128KB RAM, with a supply range of 1.7V to 3.6V. The 49-UFBGA/WLCSP package includes I2S, DMA, PWM, and WDT, making it ideal for advanced IoT, audio, and motor control applications.
- High performance: 100MHz Cortex-M4 with FPU accelerates complex algorithms.
- Large memory: 256KB flash and 128KB RAM support rich applications.
- Ultra-compact: WLCSP package minimizes footprint for portable devices.
- Rich peripherals: I2S, DMA, and PWM enable versatile system integration.
IoT Edge Devices
100MHz Cortex-M4 with FPU handles MQTT, TLS, and sensor fusion in smart home hubs.
Audio Processing
I2S and DSP instructions enable real-time audio effects in wearables and speakers.
Motor Control
PWM timers and 128KB RAM support field-oriented control of BLDC motors.
Portable Medical Devices
Low 1.7V operation and small WLCSP package fit hearing aids and glucose monitors.
Industrial Automation
DMA and brown-out detection ensure reliable PLC and HMI communication.
Drone Flight Controllers
High-speed processing and FPU handle sensor fusion and PID loops in real time.
- Q: What core does the STM32F411CC use?
- A: It uses the ARM Cortex-M4 with FPU at 100MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: How much flash and RAM are included?
- A: It has 256KB flash and 128KB RAM.
- Q: What package is available?
- A: It comes in a 49-UFBGA/WLCSP package.
- Q: Does it support DSP instructions?
- A: Yes, the Cortex-M4 includes DSP and FPU instructions for signal processing.
