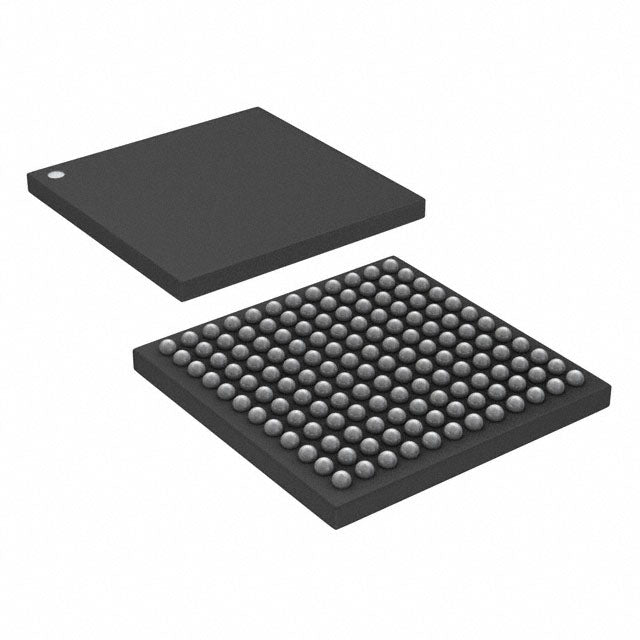

STMicroelectronics STM32F412ZEJ3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.81 | $26.81 |
| 15+ | $6.16 | $92.40 |
| 25+ | $6.03 | $150.75 |
| 50+ | $5.70 | $285.00 |
| 100+ | $5.03 | $503.00 |
| N+ | $1.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (10x10) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STMicroelectronics STM32F412ZEJ3 is a high-performance 32-bit MCU based on the ARM Cortex-M4 core, operating at 100MHz. It offers 512KB of flash memory and 256KB of SRAM, with a rich set of peripherals including DMA, I2S, LCD controller, PWM, and watchdog timers. Housed in a 144-UFBGA package, it supports 1.7V to 3.6V supply and operates from -40°C to 125°C, making it ideal for demanding industrial and consumer applications.
- High temperature tolerance: -40°C to 125°C for extreme environments.
- Large RAM: 256KB enables complex real-time processing and buffering.
- Integrated LCD controller: Supports direct display driving without external IC.
- Low voltage operation: 1.7V minimum for energy-efficient designs.
High-End Consumer Electronics
The 144-UFBGA package and 100MHz Cortex-M4 with 256KB RAM support complex user interfaces and multimedia processing in smart appliances.
Industrial Automation
With 512KB flash and extensive peripherals (DMA, PWM, LCD), it can manage multi-axis motion control and HMI panels.
Medical Monitoring Devices
The extended temperature range (-40°C to 125°C) and low voltage operation make it suitable for portable patient monitors.
Smart Grid Infrastructure
Robust communication interfaces and DMA enable efficient data acquisition and protocol handling in power line monitors.
Automotive Infotainment
The high temperature rating and LCD controller support dashboard displays and audio processing in harsh environments.
Robotics
Multiple PWM channels and 256KB RAM allow complex kinematics calculations and real-time servo control.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M4 running at 100MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 512KB flash and 256KB RAM.
- Q: What package is available?
- A: It comes in a 144-UFBGA package.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 125°C.
