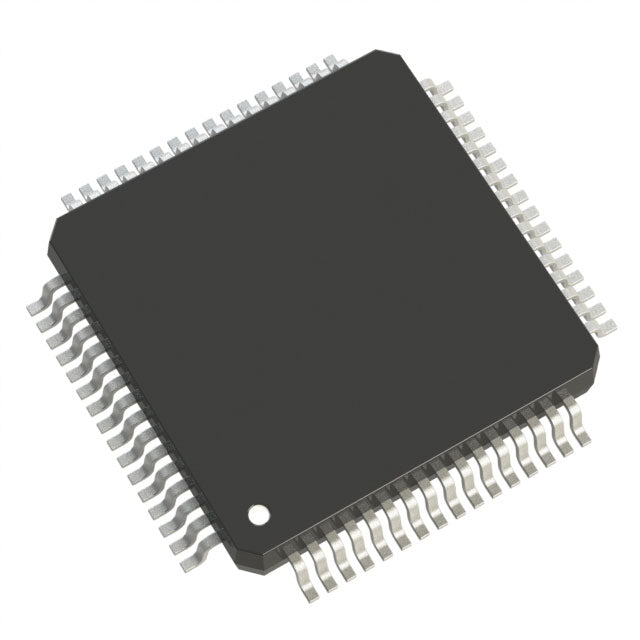

STMicroelectronics STM32F423RHT6
Regular price
$13.31
Regular price
$9.51
Sale price
$13.31
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.31 | $13.31 |
| 15+ | $8.75 | $131.25 |
| 25+ | $8.56 | $214.00 |
| 50+ | $8.08 | $404.00 |
| 100+ | $7.13 | $713.00 |
| N+ | $1.43 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32F423RHT6 from STMicroelectronics is a 32-bit ARM Cortex-M4 MCU with 1.5MB flash and 320KB SRAM. Running at 100MHz, it offers rich connectivity including I2S and LCD. The 64-LQFP package is suitable for advanced embedded applications requiring high memory and performance.
- High memory: 1.5MB flash for complex applications.
- DSP performance: Cortex-M4 with FPU for signal processing.
- Rich peripherals: I2S, LCD, DMA for multimedia.
- Low power: 1.7V operation for battery devices.
High-End Consumer
1.5MB flash and 320KB SRAM support rich GUI and audio processing on smart appliances.
Industrial HMI
100MHz Cortex-M4 with DSP instructions for real-time visualization and control.
Medical Monitoring
Low power and high memory for patient vital sign monitors with data logging.
IoT Gateways
Multiple I2S and DMA for audio streaming and sensor fusion.
Printers
Large memory for font rendering and print job buffering.
Test Equipment
Precise timing and PWM for waveform generation and measurement.
- Q: What is the maximum clock speed?
- A: 100MHz.
- Q: How much flash memory is available?
- A: 1.5MB.
- Q: Does it support LCD?
- A: Yes, it has an LCD parallel interface.
- Q: What is the supply voltage?
- A: 1.7V to 3.6V.
Base Product Number ：
STM32F423RH
