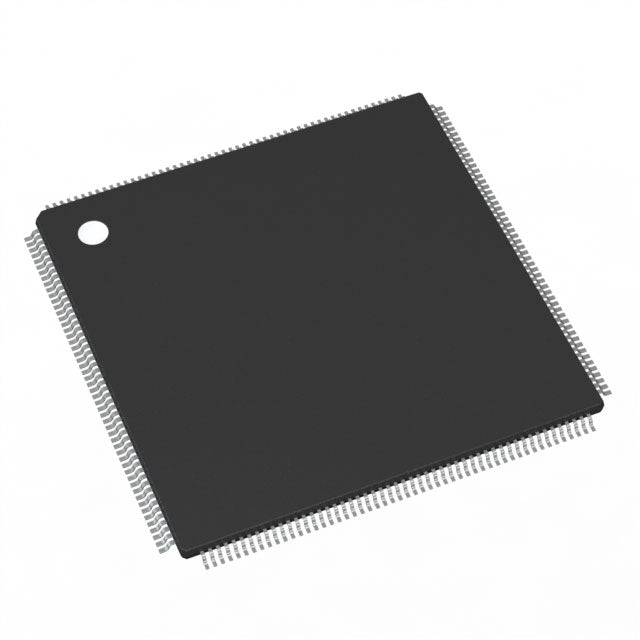

STMicroelectronics STM32F439BIT6J
Regular price
$61.36
Regular price
$15.34
Sale price
$61.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $61.36 | $61.36 |
| 15+ | $14.11 | $211.65 |
| 25+ | $13.81 | $345.25 |
| 50+ | $13.04 | $652.00 |
| 100+ | $11.51 | $1,151.00 |
| N+ | $2.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32F439BIT6J from STMicroelectronics is a high-performance ARM Cortex-M4 MCU running at 180MHz. It features 2MB flash and 256KB RAM, with a supply range of 1.8V-3.6V. Integrated peripherals include LCD controller, DMA, I2S, PWM, and brown-out detection. Packaged in 208-LQFP, it targets advanced embedded applications.
- 2MB flash – largest in class for complex application code.
- 180MHz Cortex-M4 – high throughput with DSP and FPU.
- Integrated LCD controller – reduces external display driver cost.
- Rich peripheral set (DMA, I2S, PWM) – versatile for many use cases.
High-End Industrial HMI Panels
2MB flash and LCD controller drive rich graphical interfaces.
Medical Imaging Systems
180MHz Cortex-M4 with DSP instructions accelerates signal processing.
Audio Processing Units
I2S interface and DMA enable low-latency audio streaming.
Robotics Controllers
256KB RAM supports complex kinematics; PWM drives servos.
Smart Grid Meters
Brown-out detect ensures data integrity during power events.
Automotive Infotainment
High-speed processing and LCD support dashboard displays.
- Q: What core does it use?
- A: ARM Cortex-M4 at 180MHz.
- Q: How much flash and RAM?
- A: 2MB flash and 256KB RAM.
- Q: What is the voltage range?
- A: 1.8V to 3.6V.
- Q: Does it support LCD?
- A: Yes, includes LCD controller, DMA, I2S, and PWM.
Base Product Number ：
STM32F439BI
STM32F439BIT6J.pdf
