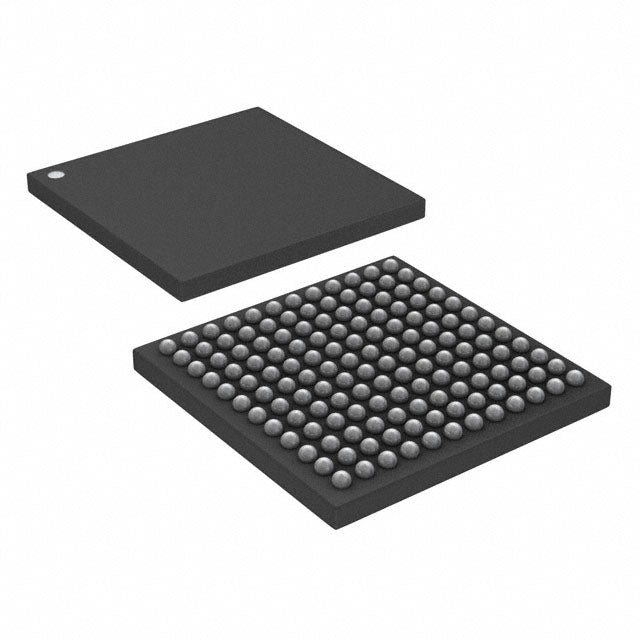

STMicroelectronics STM32F446ZEJ6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.73 | $14.73 |
| 15+ | $9.68 | $145.20 |
| 25+ | $9.47 | $236.75 |
| 50+ | $8.94 | $447.00 |
| 100+ | $7.89 | $789.00 |
| N+ | $1.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (10x10) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STM32F446ZEJ6 from STMicroelectronics is a powerful ARM Cortex-M4 microcontroller designed for high-performance embedded applications. Operating at 180 MHz, it provides 512KB of flash memory and 128KB of SRAM in a 144-UFBGA package. With a supply voltage range of 1.7V to 3.6V and integrated I2S, DMA, and brown-out detection, this MCU is well-suited for audio processing, industrial control, and IoT devices requiring advanced computational capabilities.
- High-Performance Core: 180 MHz Cortex-M4 with FPU handles complex algorithms efficiently.
- Large Memory Capacity: 512KB flash and 128KB SRAM enable feature-rich firmware.
- Integrated I2S: Facilitates direct interfacing with audio codecs and digital audio.
- Wide Voltage Flexibility: 1.7V to 3.6V range supports various power supply designs.
- Comprehensive Peripherals: DMA, PWM, and WDT reduce external component needs.
Professional Audio Mixers
Leverage the 180 MHz Cortex-M4 and I2S to process multiple audio channels with low latency in mixing consoles.
Robotics Controllers
The high-speed PWM and 128KB SRAM enable complex kinematics and real-time trajectory planning for robotic arms.
Smart Grid Meters
With 512KB flash, this MCU handles advanced metering algorithms and secure communication protocols.
Portable Test Equipment
The low 1.7V operation and DSP capabilities support battery-powered oscilloscopes and spectrum analyzers.
Automotive Aftermarket
Use the robust feature set for engine control units or infotainment systems in non-safety-critical applications.
Vision Systems
Combine the processing power with external cameras for real-time image preprocessing in industrial inspection.
- Q: What is the operating speed of the STM32F446ZEJ6?
- A: It operates at up to 180 MHz with an ARM Cortex-M4 core.
- Q: What is the voltage range?
- A: The supply voltage ranges from 1.7V to 3.6V.
- Q: What are the memory sizes?
- A: It includes 512KB of flash and 128KB of SRAM.
- Q: What package is used?
- A: It comes in a 144-UFBGA package.
- Q: Does it have I2S support?
- A: Yes, it features I2S interfaces for audio applications.
