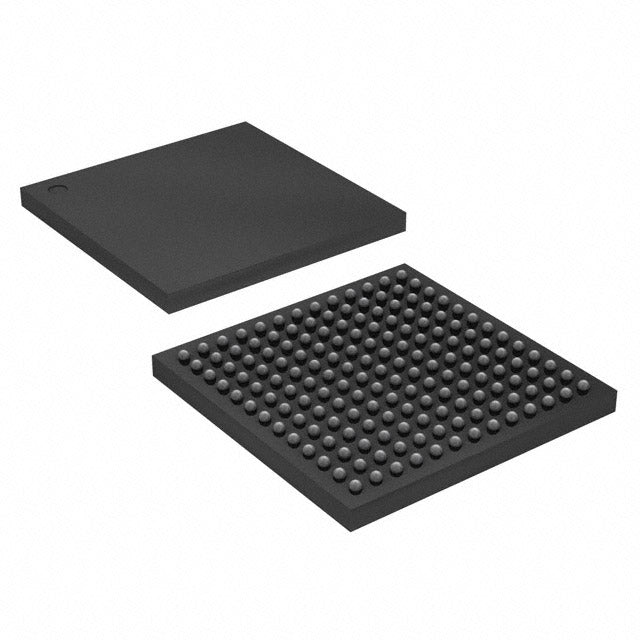

STMicroelectronics STM32F469AGH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $37.57 | $37.57 |
| 15+ | $8.64 | $129.60 |
| 25+ | $8.45 | $211.25 |
| 50+ | $7.98 | $399.00 |
| 100+ | $7.04 | $704.00 |
| N+ | $1.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 169-UFBGA (7x7) |
| Package / Case | 169-UFBGA |
| ROHS |  |
The STM32F469AGH6 is a high-performance microcontroller from STMicroelectronics, built around the ARM Cortex-M4 core. It operates at 180MHz and includes 1MB of flash and 384KB of SRAM. This device features a TFT-LCD controller, making it an excellent choice for applications that require advanced graphical user interfaces.
- High Performance: 180MHz Cortex-M4 with FPU for fast and efficient processing.
- On-chip LCD Controller: Simplifies design and reduces BOM cost for display applications.
- Extensive Memory: 1MB flash and 384KB RAM for complex applications.
- Flexible Packaging: UFBGA package offers a compact footprint with many I/Os.
Advanced HMI Systems
With its LCD controller and high-speed core, it can drive complex graphical interfaces in industrial and medical equipment.
Audio Processing
The I2S interface and DSP instructions enable high-quality audio effects and playback.
Smart Appliances
Connectivity and control features make it suitable for next-generation smart home appliances.
Portable Instruments
Low-power modes and high performance balance battery life with measurement accuracy.
Networking Equipment
Ethernet MAC and DMA support efficient data routing in small network devices.
Gaming Peripherals
High-speed USB and precise timers are ideal for gaming keyboards and mice.
- Q: What is the difference between STM32F469AGH6 and STM32F469AGH6TR?
- A: The 'TR' suffix indicates tape-and-reel packaging; the chip itself is identical.
- Q: What is the maximum clock speed?
- A: The ARM Cortex-M4 core can run up to 180 MHz.
- Q: Does it support external memory?
- A: Yes, it has an FMC interface for SDRAM, NOR, and NAND flash.
- Q: What is the package size?
- A: It is available in a 169-ball UFBGA package.
STM32F469AGH6.pdf
