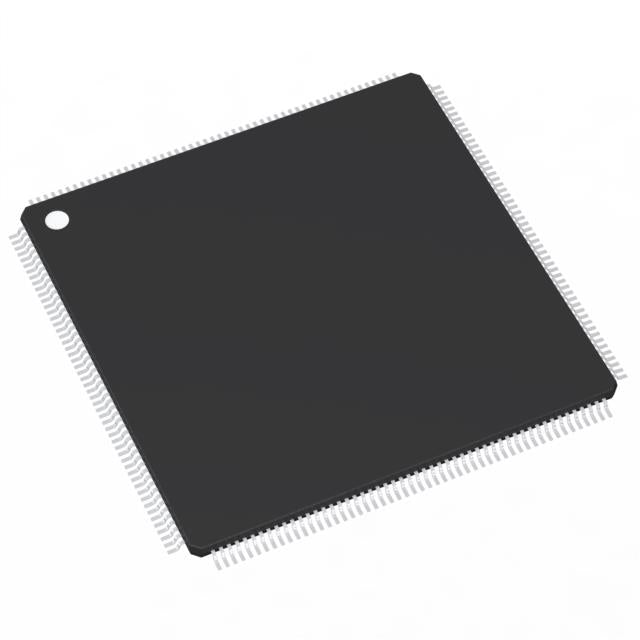

STMicroelectronics STM32F469BIT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.19 | $26.19 |
| 15+ | $17.21 | $258.15 |
| 25+ | $16.84 | $421.00 |
| 50+ | $15.90 | $795.00 |
| 100+ | $14.03 | $1,403.00 |
| N+ | $2.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 161 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32F469BIT6 is a high-performance microcontroller from STMicroelectronics, based on the ARM Cortex-M4 core with FPU. It operates at 180 MHz and features 2MB flash and 384KB RAM. The device includes a TFT LCD controller, I2S, DMA, PWM, and comprehensive safety features. Housed in a 208-LQFP package, it is designed for advanced graphical and connectivity applications.
- Integrated LCD Controller: Directly drives TFT displays, reducing BOM cost.
- High Core Performance: 180 MHz Cortex-M4 with FPU accelerates signal processing.
- Large Memory: 2MB flash and 384KB RAM support complex applications.
- Rich Multimedia: I2S, SAI, and DMA enable audio and video streaming.
- Comprehensive Safety: Brown-out detect, POR, and WDT enhance system robustness.
Human-Machine Interfaces (HMI)
The integrated LCD controller and 2MB flash allow rich graphical user interfaces on TFT displays without external graphics chips.
Smart Home Controllers
With multiple communication interfaces and PWM, it can manage lighting, HVAC, and security systems in a central hub.
Industrial Process Control
The 180 MHz M4 core with FPU handles PID loops and data logging, while the WDT ensures fail-safe operation.
Portable Instrumentation
Low power modes and a wide voltage range support battery-operated multimeters and oscilloscopes with graphical displays.
Audio Processing
The I2S interface and DMA enable high-fidelity audio streaming and real-time effects processing.
Building Automation
Multiple timers and ADC channels allow monitoring of environmental sensors and controlling actuators in HVAC systems.
- Q: What is the core processor of the STM32F469BIT6?
- A: It uses the ARM Cortex-M4 core with FPU.
- Q: What is the maximum operating frequency?
- A: It runs at up to 180 MHz.
- Q: How much flash and RAM does it have?
- A: It has 2MB flash and 384KB RAM.
- Q: Does it support LCD?
- A: Yes, it has a built-in LCD controller.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
