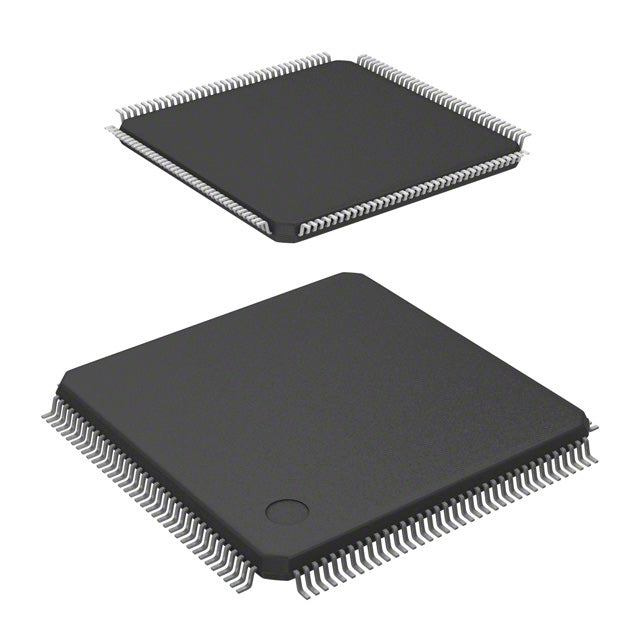

STMicroelectronics STM32F469ZGT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.85 | $21.85 |
| 15+ | $14.36 | $215.40 |
| 25+ | $14.05 | $351.25 |
| 50+ | $13.27 | $663.50 |
| 100+ | $11.71 | $1,171.00 |
| N+ | $2.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 106 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 20x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The STM32F469ZGT6 is a feature-rich microcontroller from STMicroelectronics, powered by an ARM Cortex-M4 core at 180MHz. It integrates a TFT LCD controller, making it perfect for graphical applications. With 1MB of flash memory and 384KB of SRAM, it can handle complex software and large data buffers. The device includes DMA, I2S, PWM, and watchdog peripherals, all housed in a 144-LQFP package. Its wide voltage range and industrial temperature rating ensure robust performance in diverse settings.
- Integrated LCD Controller: Eliminates the need for external display drivers, reducing BOM cost and board space.
- High Memory Capacity: 1MB flash and 384KB SRAM support complex applications and large graphical assets.
- Efficient DSP Performance: The Cortex-M4 core with FPU accelerates mathematical computations for signal processing.
- Rich Connectivity: Multiple communication interfaces enable seamless integration with sensors and networks.
Graphical User Interfaces
The integrated LCD controller and 384KB SRAM allow direct driving of TFT displays, enabling rich graphical interfaces for home appliances and industrial panels.
Smart Home Gateways
With 1MB flash and multiple communication interfaces, it can manage complex protocols and act as a central hub for IoT devices.
Medical Monitoring Equipment
The Cortex-M4 core with DSP instructions accelerates signal processing for ECG and patient monitoring systems, ensuring accurate real-time data.
Point-of-Sale Terminals
Its display support and secure boot features make it ideal for POS systems requiring reliable user interaction and data integrity.
Advanced Metering Infrastructure
The combination of high-speed ADC and DMA enables precise energy measurement and data logging in smart meters.
Robotics Controllers
Multiple timers and PWM channels provide precise control for servo motors and actuators in educational and industrial robots.
- Q: What is the core and speed of the STM32F469ZGT6?
- A: It uses an ARM Cortex-M4 core running at up to 180 MHz, balancing performance with power efficiency.
- Q: Does it support LCD displays?
- A: Yes, it includes an integrated LCD controller, enabling direct connection to TFT displays without external drivers.
- Q: What are the memory specifications?
- A: It offers 1MB of flash memory and 384KB of SRAM, providing generous space for graphics buffers and application code.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, suitable for industrial environments.
