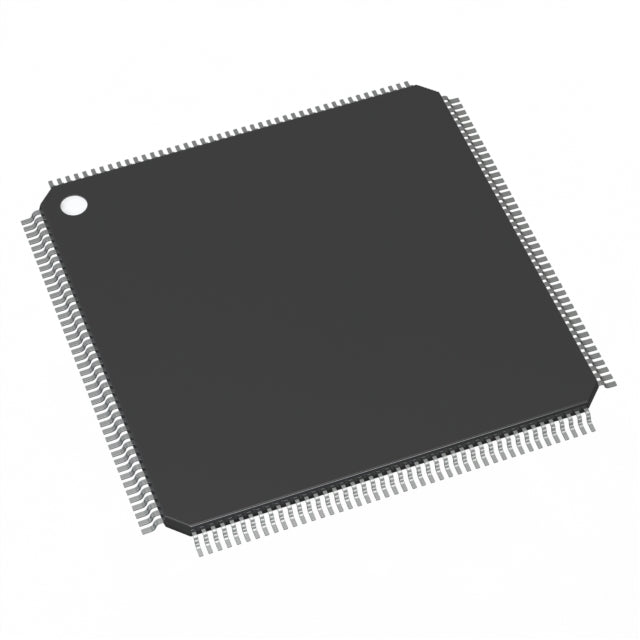

STMicroelectronics STM32F479IIT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.70 | $24.70 |
| 15+ | $16.23 | $243.45 |
| 25+ | $15.88 | $397.00 |
| 50+ | $14.99 | $749.50 |
| 100+ | $13.23 | $1,323.00 |
| N+ | $2.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 131 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STM32F479IIT6 from STMicroelectronics is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core with FPU. It operates at up to 180MHz and provides 2MB of flash and 384KB of SRAM. The device supports a supply voltage range of 1.7V to 3.6V and includes a rich set of peripherals such as TFT LCD controller, camera interface, and multiple communication interfaces. Its 176-LQFP package is suitable for complex embedded systems requiring high processing power.
- High Performance: 180MHz Cortex-M4 with FPU accelerates math-intensive operations.
- Large Memory: 2MB flash and 384KB RAM support complex applications and data buffering.
- Rich Connectivity: Includes Ethernet, USB, CAN, and multiple UARTs for versatile system integration.
- Advanced Display Support: Integrated TFT controller simplifies GUI design.
- Comprehensive Security: Features like a true random number generator and CRC enhance system security.
Advanced Human-Machine Interfaces
The integrated TFT LCD controller and 180MHz Cortex-M4 core enable smooth graphical interfaces with high-resolution displays.
Industrial Motor Control
With multiple timers and PWM channels, it can drive complex motor control algorithms for robotics and CNC machines.
Smart Home Gateways
Its rich connectivity options (Ethernet, USB, CAN) and 2MB flash make it ideal for managing multiple smart home protocols.
Medical Imaging Devices
The high-speed core and DMA handle real-time image processing from ultrasound or optical sensors.
Audio Processing
The I2S interface and large RAM support high-quality audio streaming and effects processing.
Embedded Vision Systems
With a camera interface and DSP instructions, it can perform real-time image recognition for security and inspection.
- Q: What is the maximum clock speed of the STM32F479IIT6?
- A: It runs at up to 180MHz, providing high performance for compute-intensive tasks.
- Q: What is the supply voltage range?
- A: The device operates from 1.7V to 3.6V, allowing flexible power supply options.
- Q: How much flash and RAM does it have?
- A: It features 2MB of flash memory and 384KB of SRAM, supporting large applications.
- Q: What package is available?
- A: It comes in a 176-LQFP package, offering extensive I/O and connectivity.
