STMicroelectronics STM32F479NGH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $42.30 | $42.30 |
| 15+ | $9.72 | $145.80 |
| 25+ | $9.51 | $237.75 |
| 50+ | $8.98 | $449.00 |
| 100+ | $7.93 | $793.00 |
| N+ | $1.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 161 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

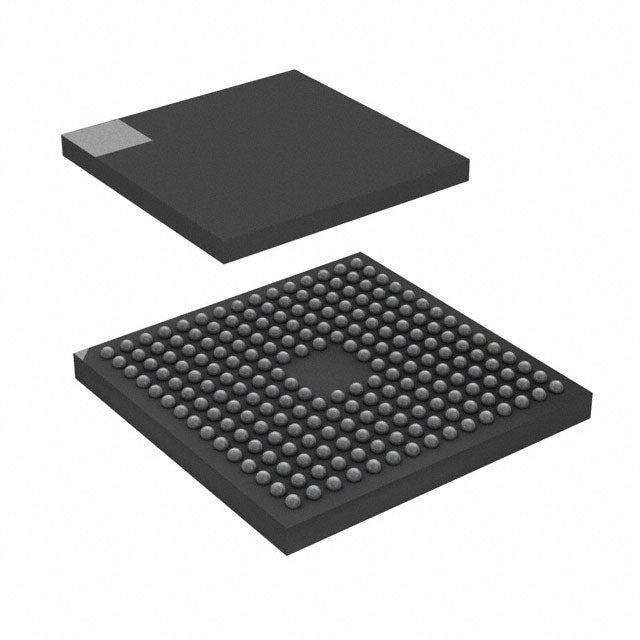

| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STMicroelectronics STM32F479NGH6 is a 32-bit MCU based on the ARM Cortex-M4 core, operating at 180MHz. It provides 1MB flash and 384KB RAM, with a supply voltage from 1.7V to 3.6V. The 216-TFBGA package includes advanced features like LCD controller, I2S, DMA, PWM, and WDT, targeting high-performance consumer and industrial applications in -40°C to 85°C environments.
- High performance: 180MHz Cortex-M4 with FPU accelerates math-intensive tasks.
- Large RAM: 384KB supports complex real-time operating systems and data buffers.
- Integrated LCD controller: Reduces external display driver cost and PCB area.
- Low voltage operation: 1.7V enables battery-powered designs with minimal power consumption.
High-End Consumer Wearables
The 180MHz Cortex-M4 and 384KB RAM support complex user interfaces and sensor fusion in smartwatches.
Audio Processing Units
I2S and DMA enable high-fidelity audio streaming and DSP effects for headphones or smart speakers.
Industrial HMI Panels
The LCD controller and 1MB flash allow for rich graphical displays with touch input in factory equipment.
Medical Monitoring Devices
Low 1.7V operation and multiple timers support portable ECG or EEG monitors with long battery life.
Robotics Controllers
PWM and DMA provide precise control of multiple servos and motors, with WDT for fail-safe operation.
Smart Home Hubs
Extensive connectivity peripherals and 180MHz speed handle protocol bridging between Zigbee, Wi-Fi, and Bluetooth.
- Q: What is the core and speed of the STM32F479NGH6?
- A: It uses an ARM Cortex-M4 core running at 180MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It includes 1MB flash and 384KB RAM.
- Q: What package is this available in?
- A: It comes in a 216-TFBGA package, with an operating temperature range of -40°C to 85°C.
