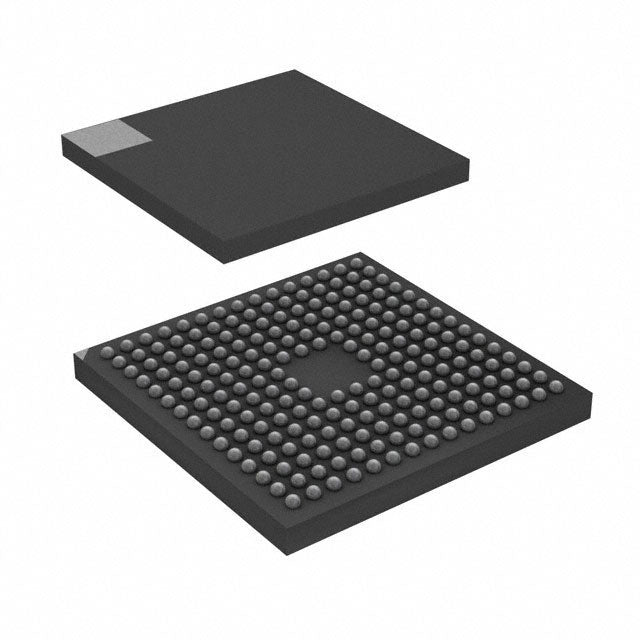

STMicroelectronics STM32F479NIH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.87 | $25.87 |
| 15+ | $17.00 | $255.00 |
| 25+ | $16.63 | $415.75 |
| 50+ | $15.71 | $785.50 |
| 100+ | $13.86 | $1,386.00 |
| N+ | $2.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 161 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32F479NIH6 is a high-performance ARM Cortex-M4 microcontroller from STMicroelectronics, operating at 180 MHz. It provides 2 MB of flash and 384 KB of SRAM, along with a rich set of peripherals including LCD-TFT controller, camera interface, I2S, and multiple DMA channels. Its wide supply voltage range and low-power modes make it suitable for advanced embedded applications requiring graphical user interfaces and real-time control.
- High-Speed Processing: 180 MHz Cortex-M4 with FPU accelerates math-intensive tasks like FFT and control loops.
- Large Memory Capacity: 2 MB flash and 384 KB SRAM support complex applications and over-the-air updates.
- Integrated Graphics: On-chip LCD-TFT controller eliminates the need for external display drivers, saving BOM cost.
- Low-Power Flexibility: 1.7V operation and multiple low-power modes extend battery life in portable devices.
- Rich Connectivity: I2S, SPI, UART, USB OTG, and Ethernet interfaces enable versatile system integration.
Industrial HMI Panels
With a built-in LCD-TFT controller and 2 MB flash, the STM32F479NIH6 can drive high-resolution displays while running complex GUI libraries, reducing external components.
Motor Control Drives
The 180 MHz Cortex-M4 with FPU and advanced PWM timers enables precise field-oriented control (FOC) for AC or BLDC motors, improving efficiency and torque ripple.
Medical Monitoring Devices
Its 1.7V low-voltage operation and multiple DMA channels support low-power continuous data acquisition from sensors, ideal for portable patient monitors.
Smart Grid Meters
Robust brown-out detection and wide voltage range ensure reliable operation in fluctuating power environments, while the large flash stores logging data.
Audio Processing Units
The I2S interface and 384 KB SRAM allow multi-channel audio streaming and DSP algorithms for active noise cancellation or voice recognition.
IoT Gateways
Combining Ethernet MAC, camera interface, and cryptographic acceleration, this MCU can serve as a secure edge gateway for industrial IoT networks.
- Q: What is the maximum operating frequency of the STM32F479NIH6?
- A: The STM32F479NIH6 runs at up to 180 MHz with an ARM Cortex-M4 core.
- Q: What is the onboard flash and RAM size?
- A: It features 2 MB of flash memory and 384 KB of SRAM.
- Q: Does this MCU support LCD interfaces?
- A: Yes, it includes an LCD parallel interface and a dedicated LCD-TFT controller.
- Q: What is the supply voltage range?
- A: The operating range is 1.7V to 3.6V, suitable for battery-powered designs.
- Q: What package is available?
- A: It comes in a 216-ball TFBGA package.
