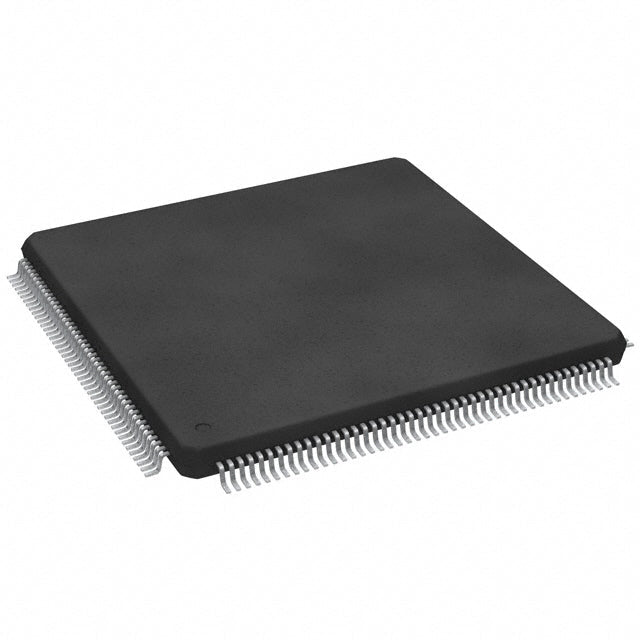

STMicroelectronics STM32F722IET7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.98 | $39.98 |
| 15+ | $22.27 | $334.05 |
| 25+ | $21.79 | $544.75 |
| 50+ | $20.58 | $1,029.00 |
| 100+ | $18.16 | $1,816.00 |
| N+ | $3.63 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 140 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STM32F722IET7 is a high-performance ARM Cortex-M7 microcontroller from STMicroelectronics. Operating at 216MHz, it provides 512KB flash and 256KB RAM. With a supply range of 1.7V to 3.6V and a -40°C to 105°C temperature range, it is engineered for demanding industrial and audio applications requiring fast processing and robust I/O in a 176-LQFP package.
- 216MHz Cortex-M7 core: Delivers exceptional processing power for complex algorithms.
- Low-voltage operation (1.7V): Enables energy-efficient and battery-powered designs.
- 512KB flash / 256KB RAM: Balanced memory for code and data-intensive applications.
- Wide temperature range (-40°C to 105°C): Reliable in extreme environments.
High-End Audio Processors
The 216MHz Cortex-M7 with I2S interfaces enables high-fidelity audio streaming and DSP effects.
Industrial Automation PLCs
Fast processing and multiple PWMs support precise control of industrial machinery.
Advanced Motor Drives
High-speed ADC and timer synchronization allow field-oriented control of motors.
Smart Grid Protection Relays
Fast interrupt handling and 1.7V operation ensure reliable, low-power protection systems.
Robotics Vision Systems
The Cortex-M7 core handles image processing algorithms with 256KB RAM for frame buffers.
Portable Test Equipment
Wide voltage range and low-power modes extend battery life in oscilloscopes and loggers.
- Q: What is the core speed of the STM32F722IET7?
- A: It runs at 216MHz, offering high computational throughput for real-time applications.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V, supporting low-voltage battery designs.
- Q: How much flash memory is available?
- A: It has 512KB of flash memory for application code and data.
- Q: What package is this MCU available in?
- A: It is offered in a 176-LQFP package, providing extensive I/O options.
